ESC-01 - SCORPIUS®

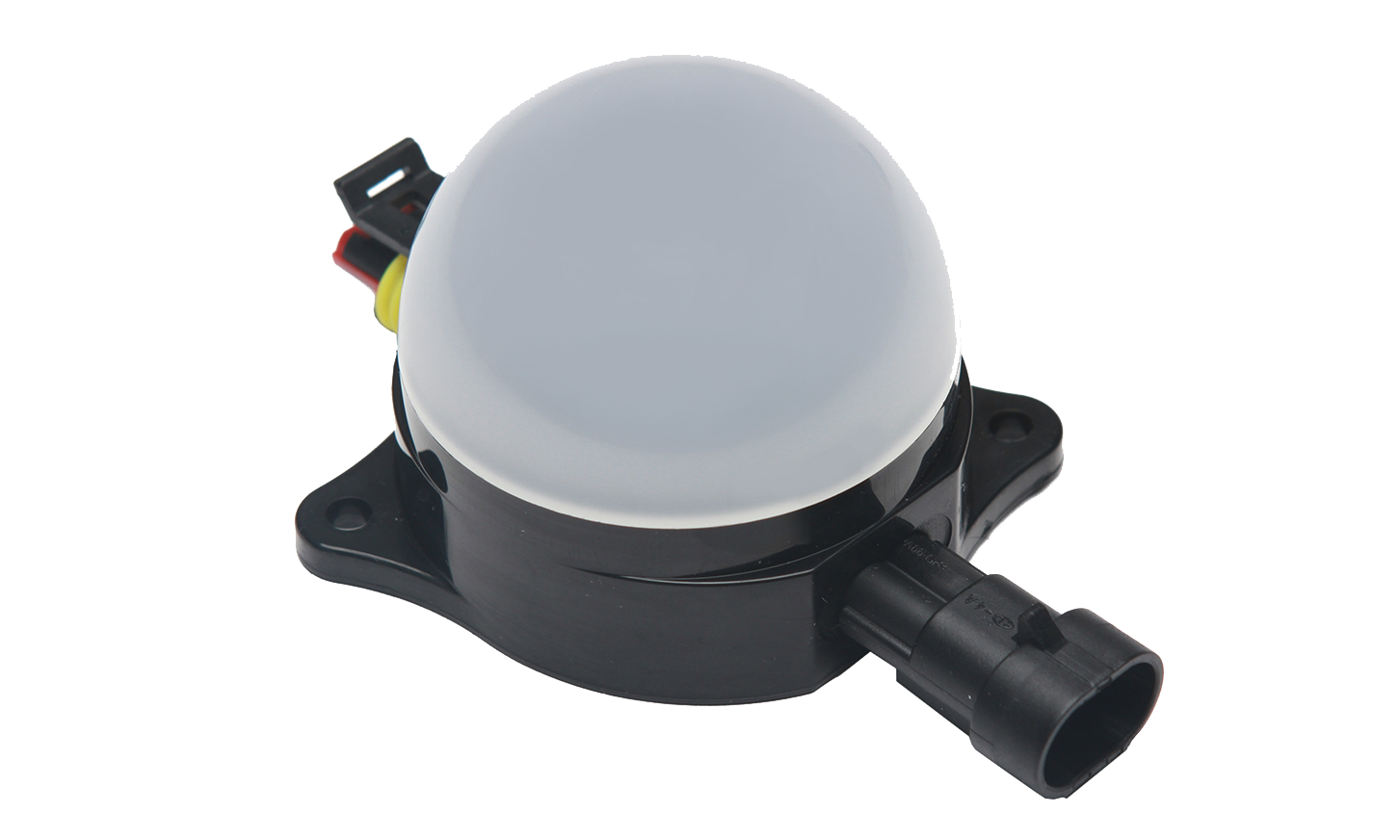

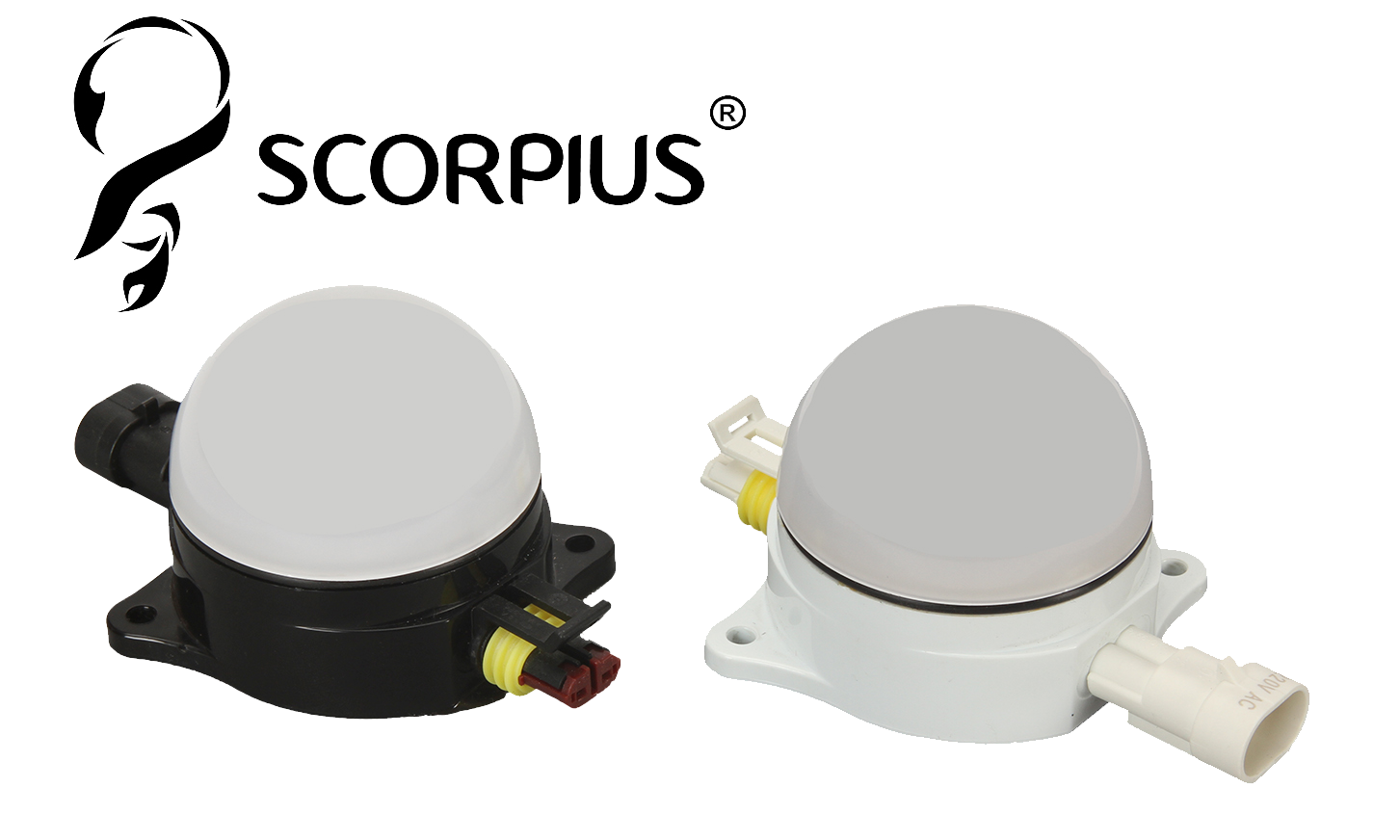

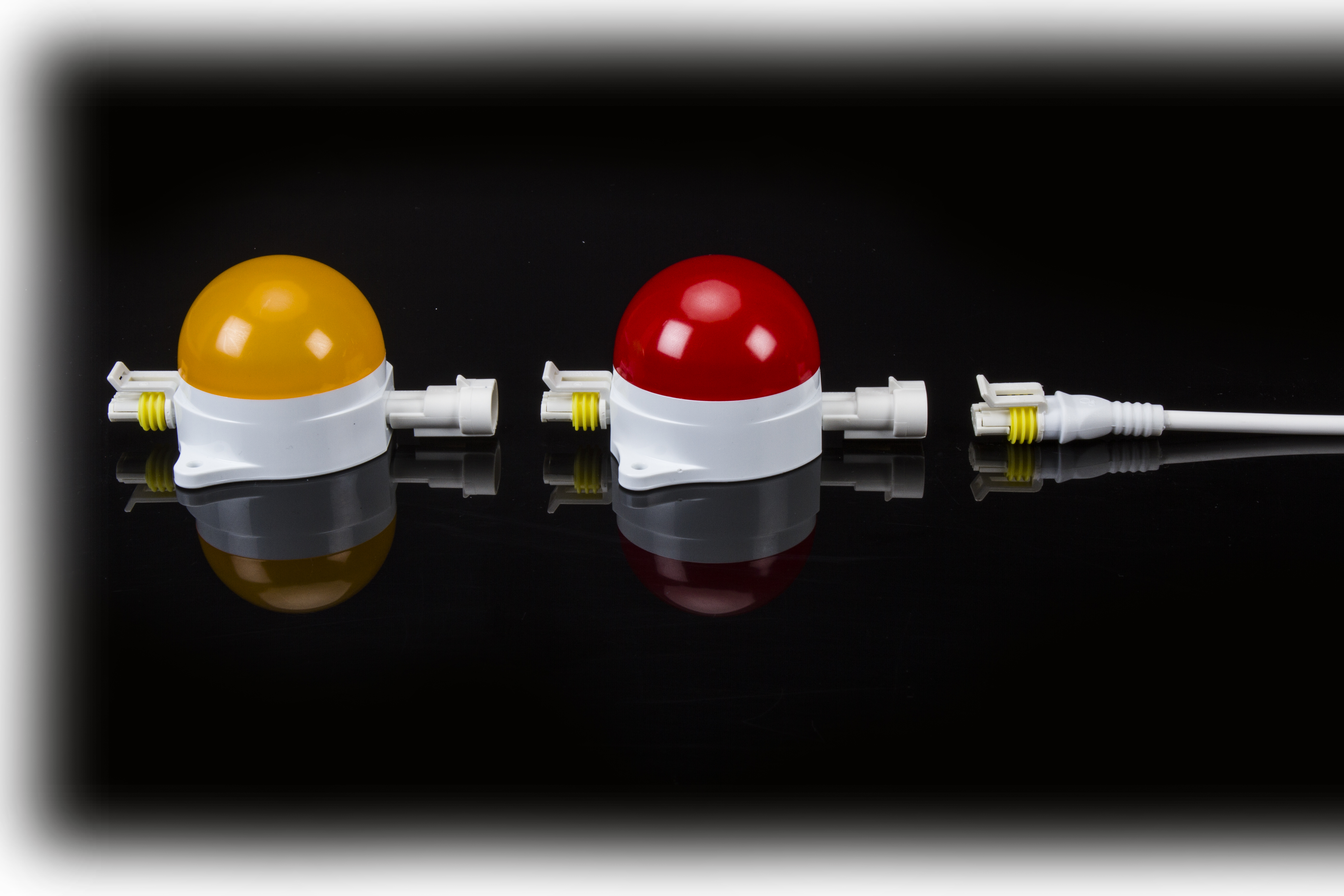

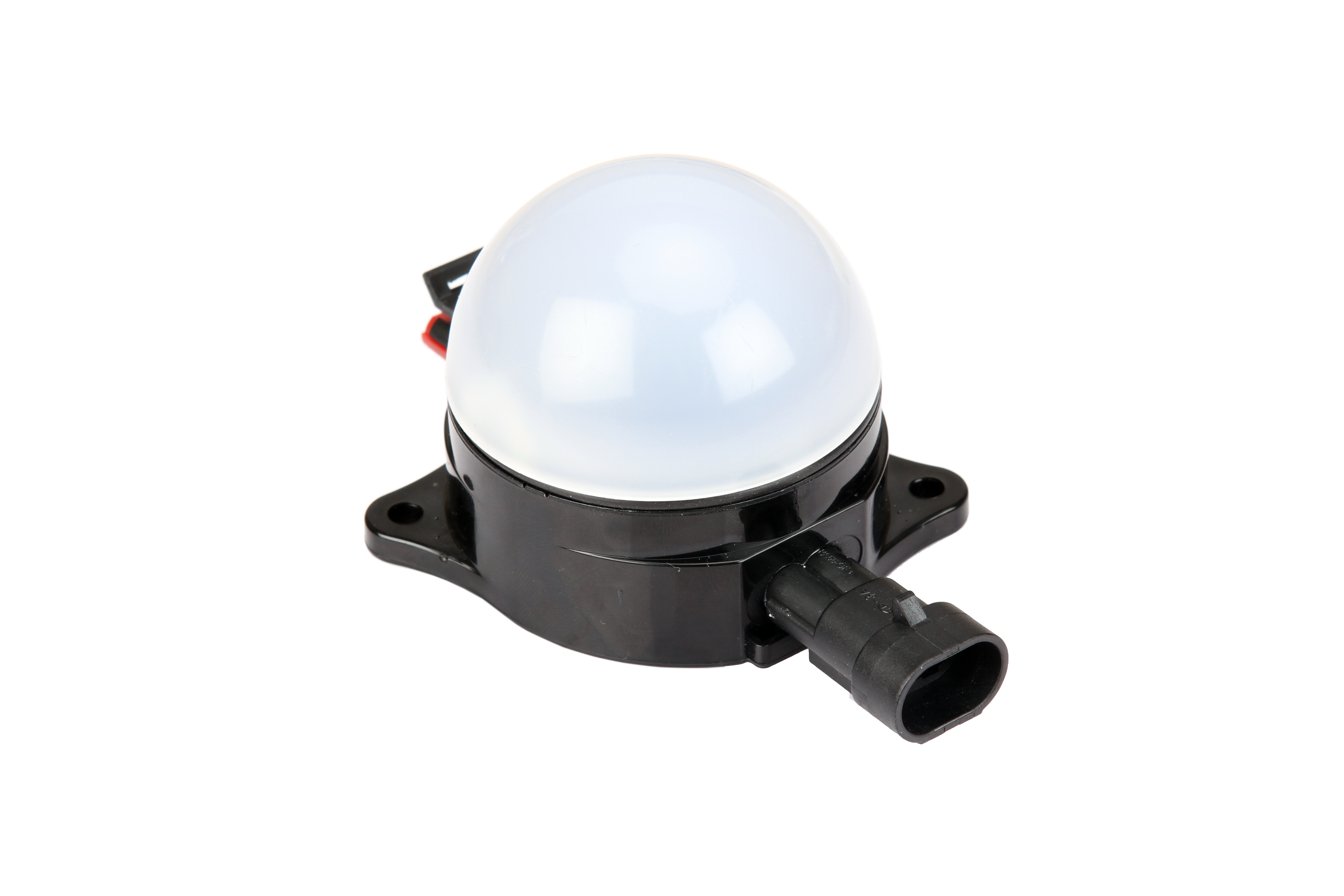

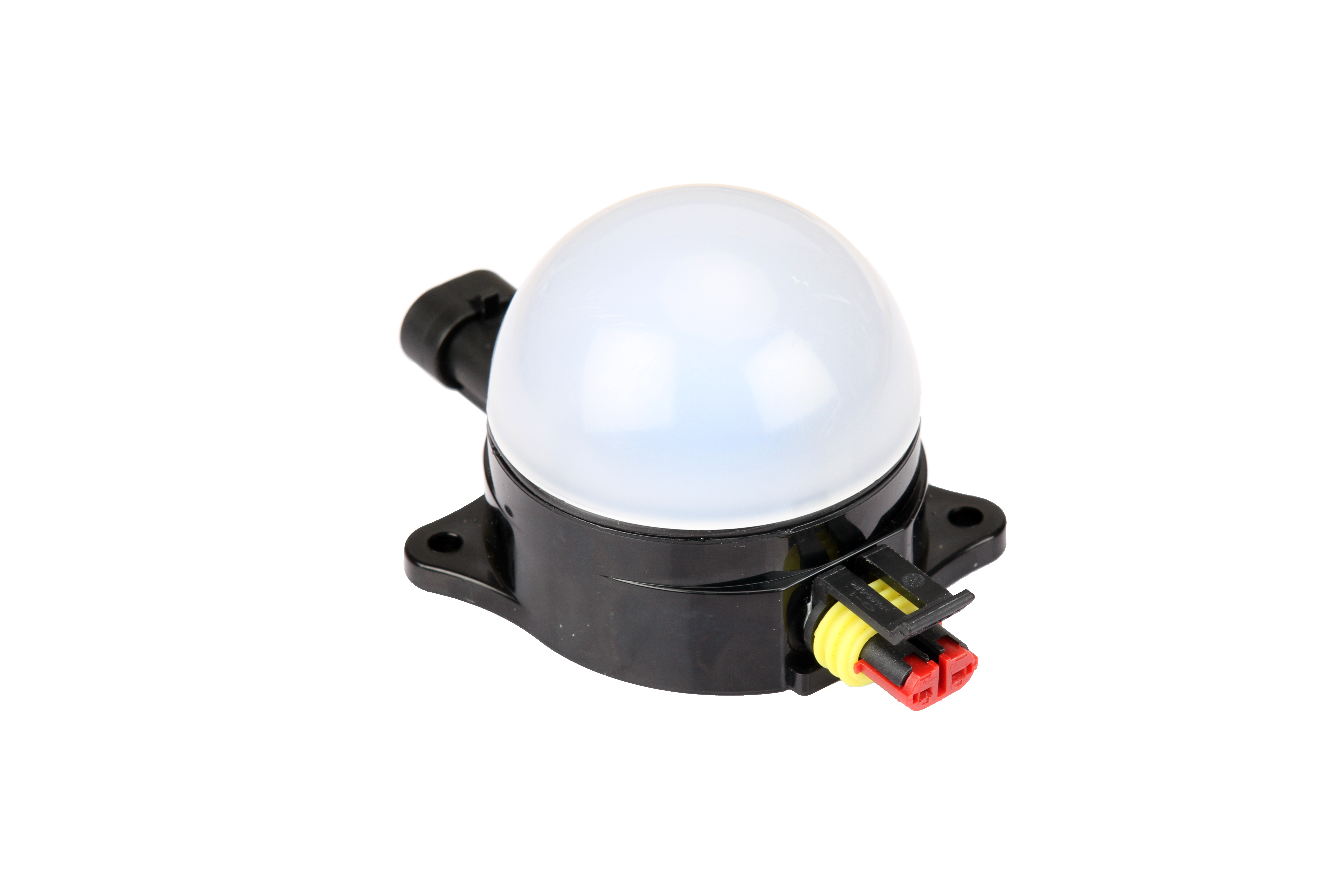

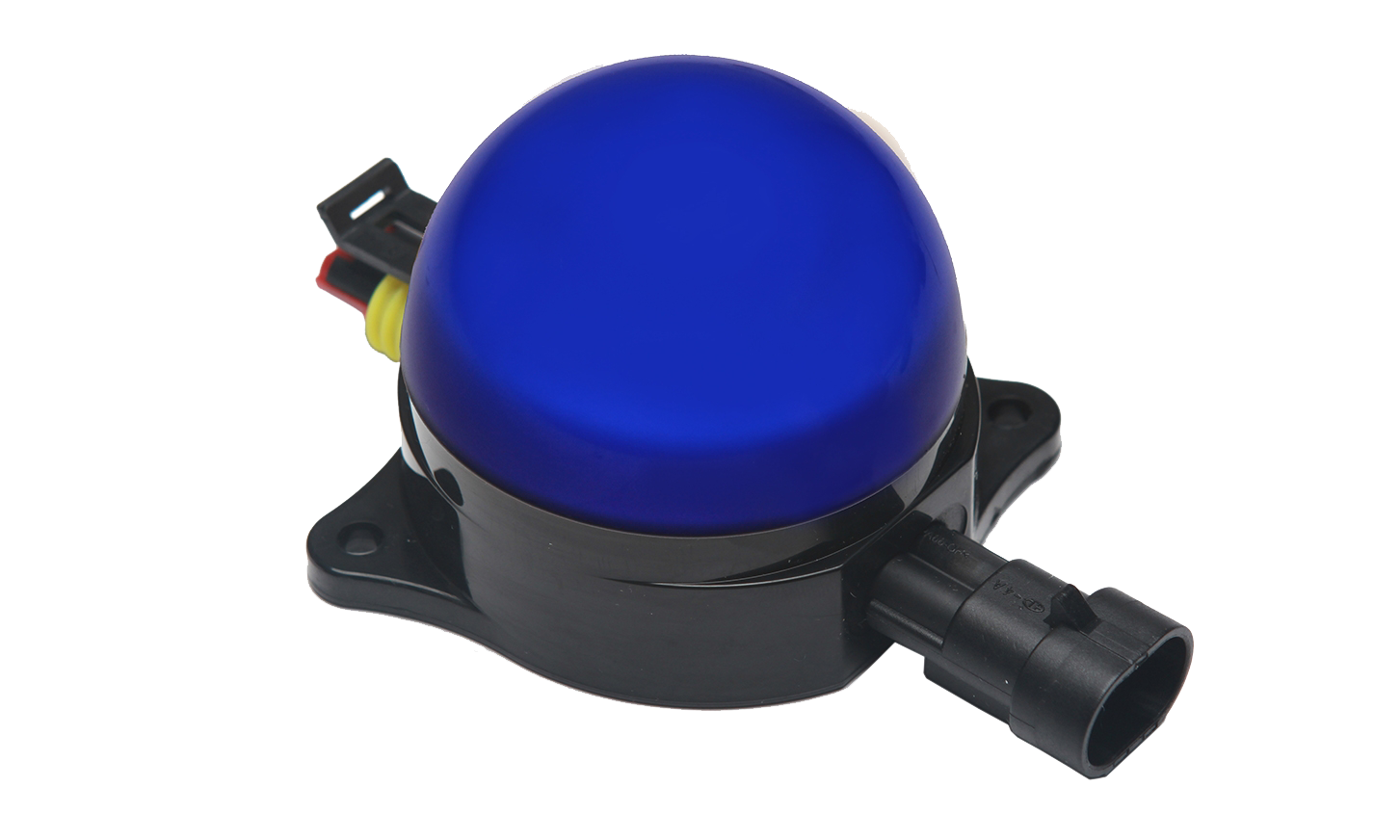

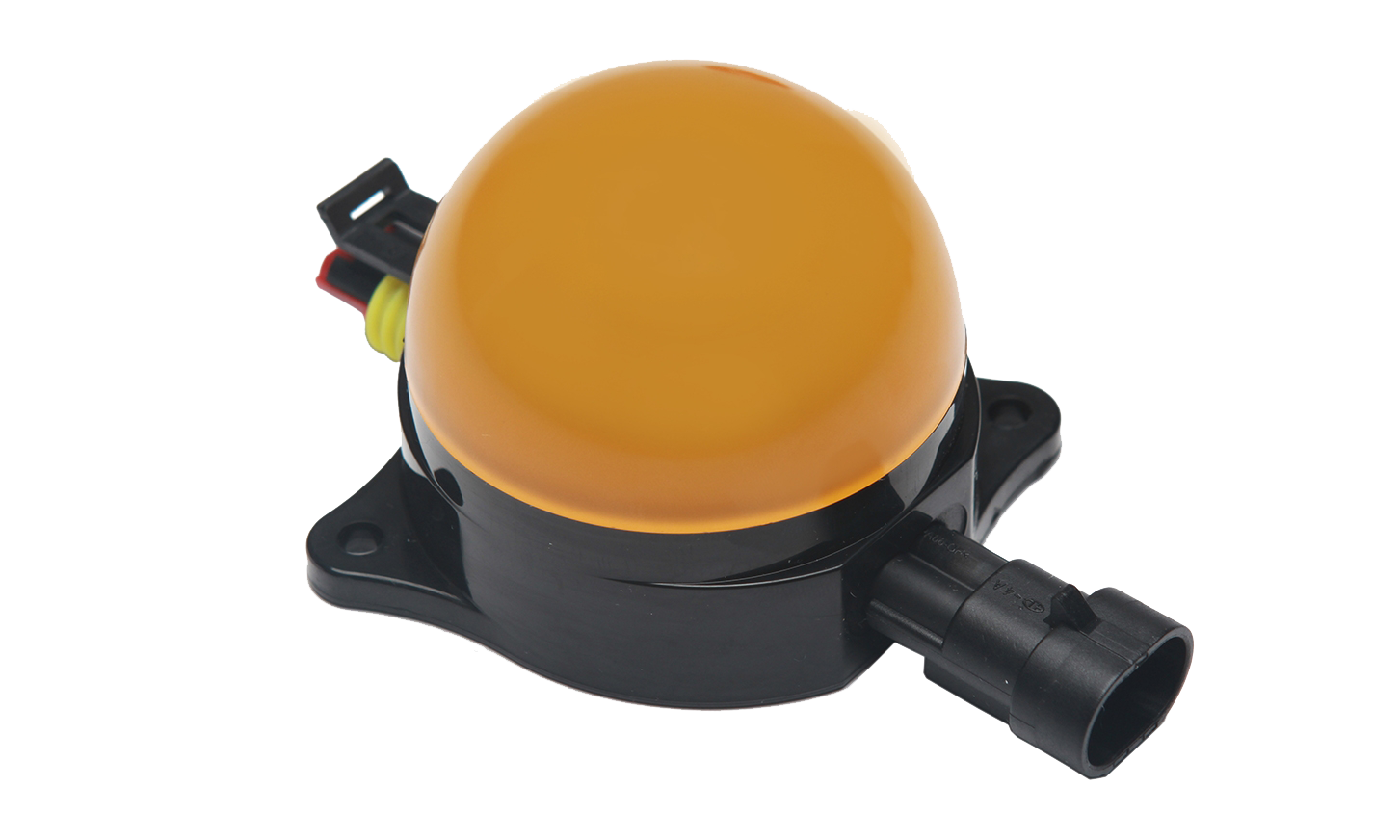

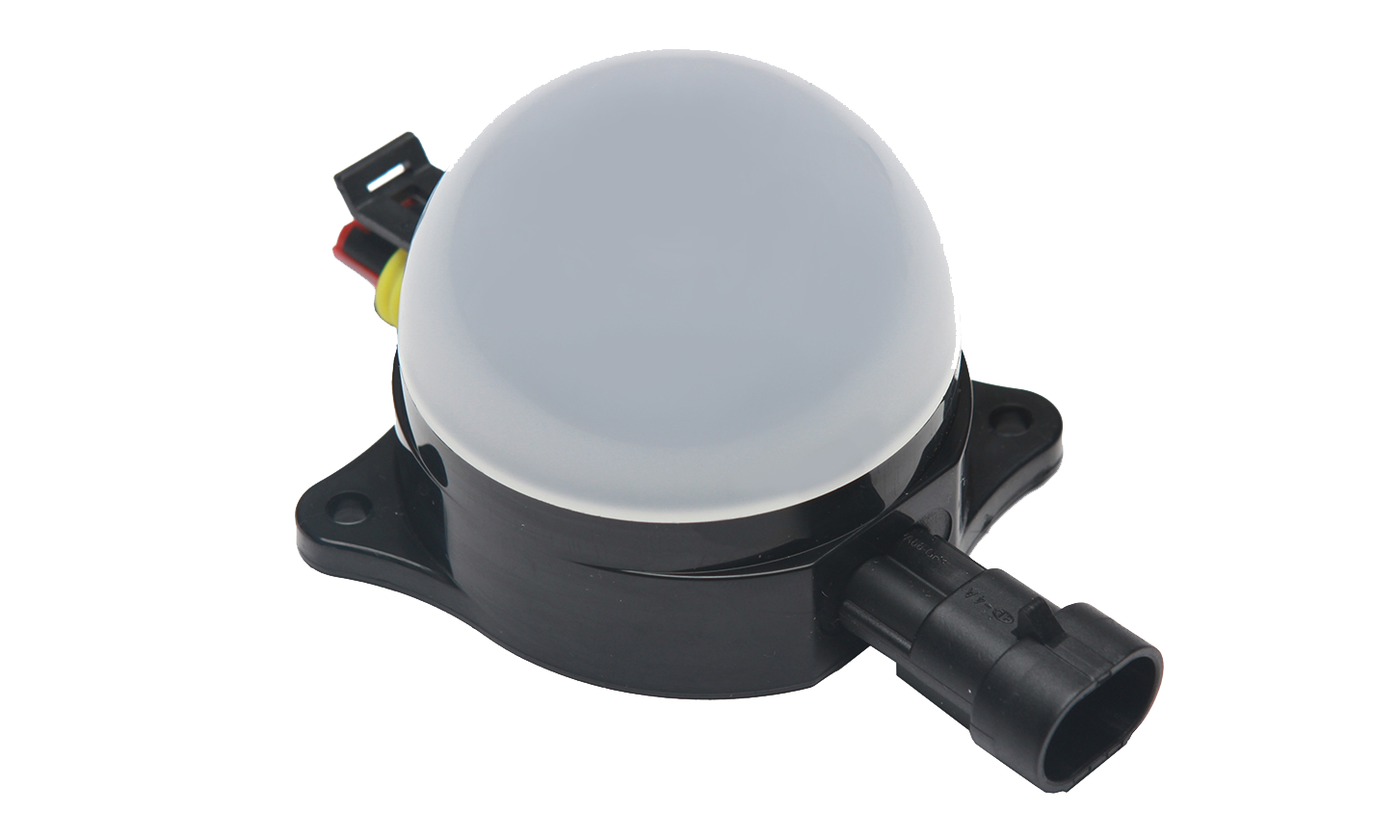

Scorpius® is DOT LED manufactured to IP67 standards. Scorpius® is used in indoor and outdoor lighting as it is resistant to thermal and mechanical impacts and vibrations thanks to its polycarbonate diffuser and body made of engineering plastics. It is resistant to harsh climatic conditions. Thanks to the connectors on the Scorpius®, they can be added one after the other or, if desired, the intermediate distances can be extended by using a cable between two Scorpius®.
TECHNICIAL SPECIFICATIONS
| Body Material | ABS |
|---|---|
| Lens Angle | 135° |
| Power Consumption | 1,2W / 2,4W / 3,8W / 6,5W |
| Source of Light | Mid Power LED |
| Operating Voltage | 12 VDC / 21,5 ~ 30 VDC / 210 ~ 240 VAC |

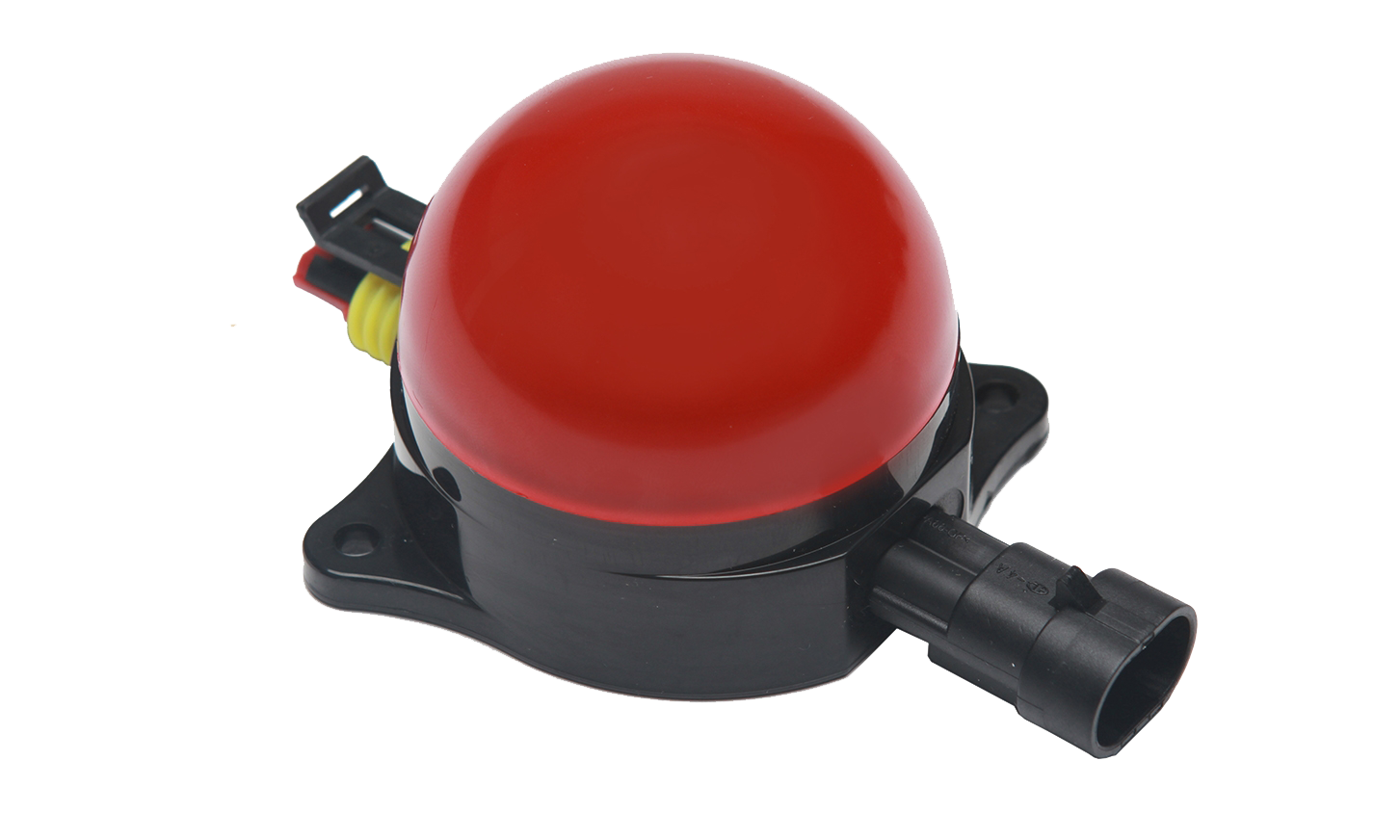

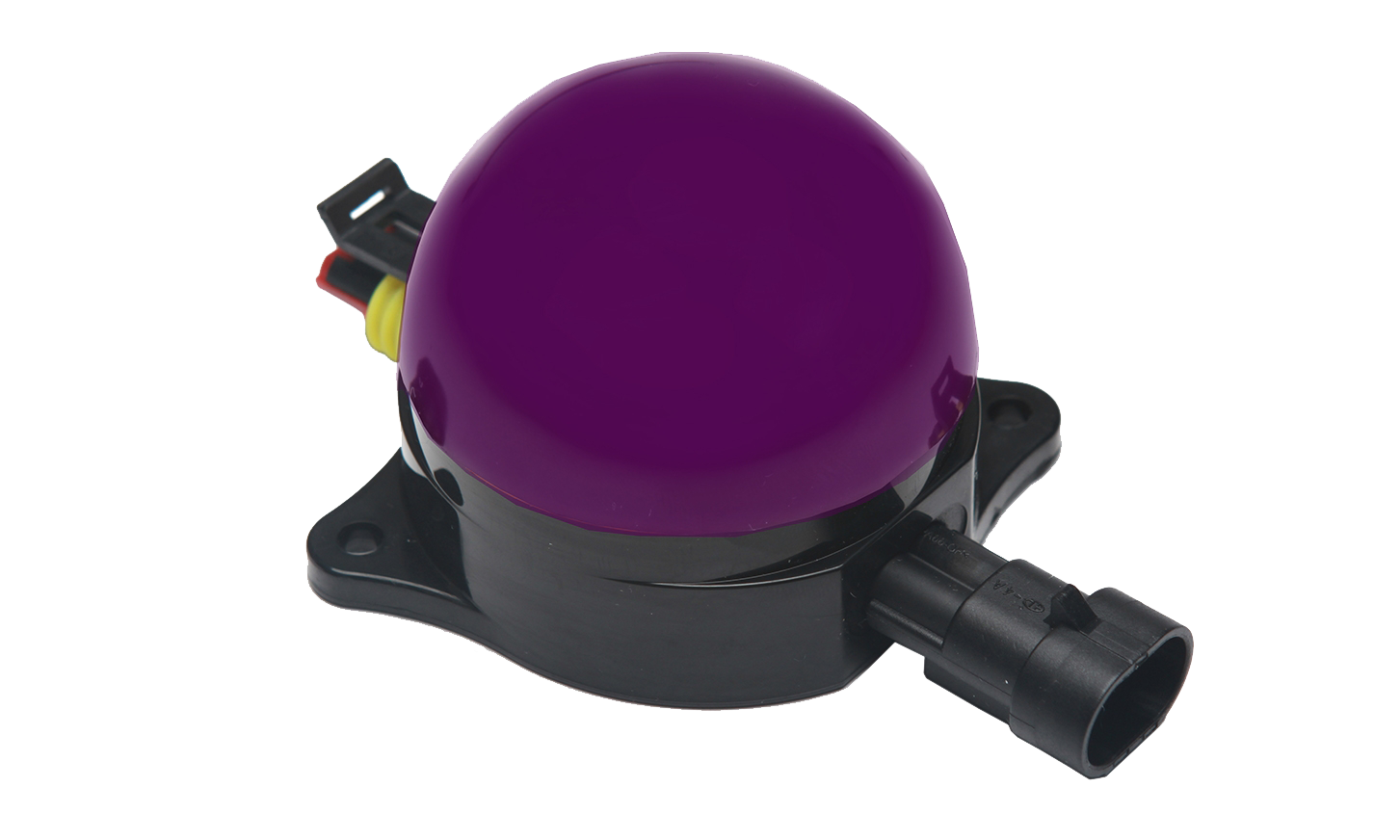

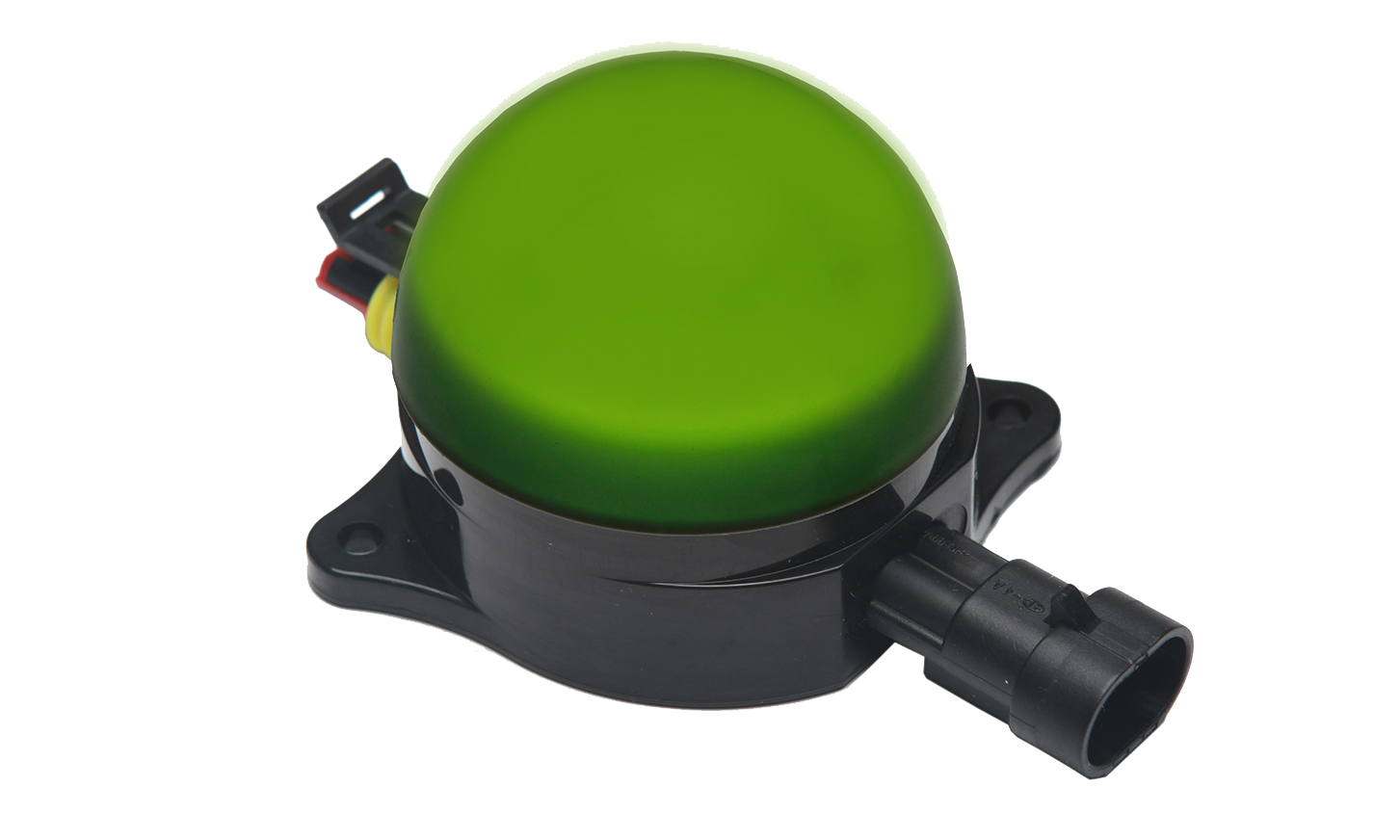

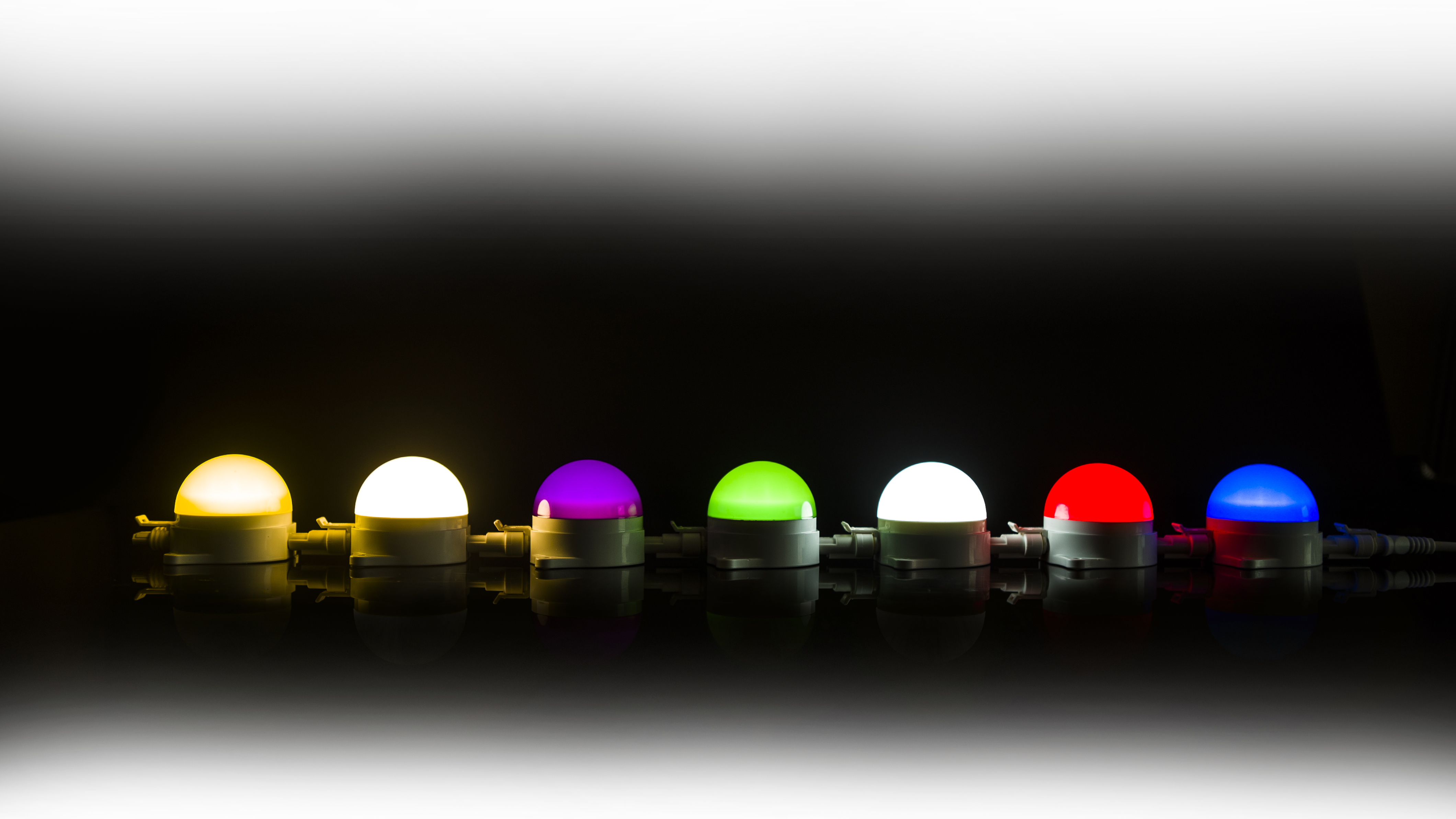

| Color Temperature | 3000~6500K, Red, Amber, Green, Purple, Blue |
| CRI | >80 |
| IP Class | IP67 |
| Product Description | Operating Voltage | Power Consumption (W) | Luminous Flux (lm) | Datasheet | LDT | Technical Drawing |
|---|---|---|---|---|---|---|
| - | ||||||
| Scorpius® 12 VDC 1,2W | 12 VDC | 1,2 W | 112 lm |
|
||
| Scorpius® 12 VDC 2,4W | 12 VDC | 2,4 W | 224 lm |
|
||
| Scorpius® 21,5 ~ 30 VDC 2,4W | 21,5 ~ 30 VDC | 2,4 W | 224 lm |
|
||
| Scorpius® 21,5 ~ 30 VDC 3,8W | 21,5 ~ 30 VDC | 3,8 W | 365 lm |
|
||
| Scorpius® 210~240 VAC 6,5W | 220 VAC 50/60Hz | 6,5 W | 578 lm |
|
