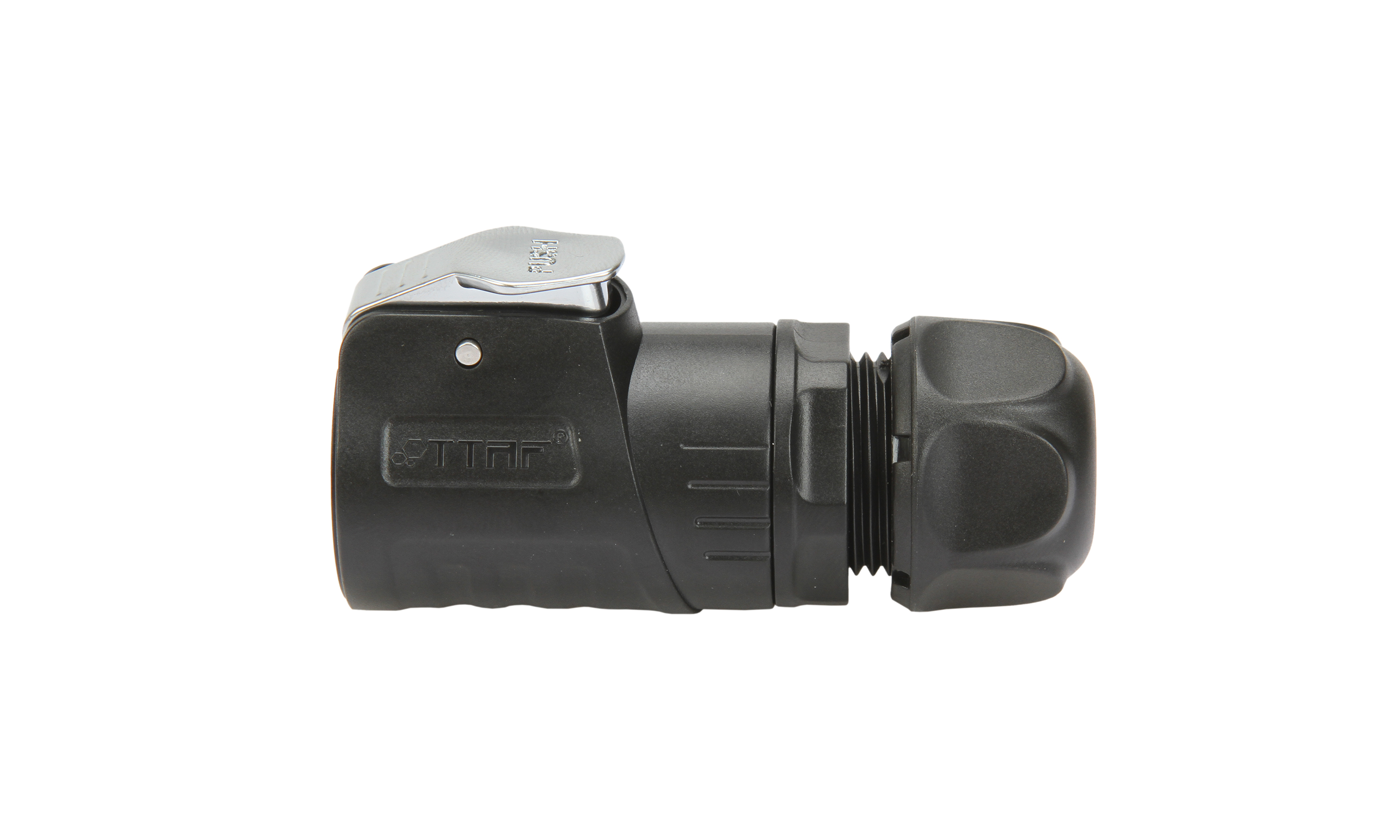

TT35 Series
Industrial Waterproof Connectors
TECHNICIAL SPECIFICATIONS
| Design | Special Lock Design |
|---|---|
| Contact Material | Phosphor Bronze, 4u” Gold Plated |
| Materiel | Silicone Gasket |
| Product Description | Rated Current | Operating Voltage | Withstanding Voltage | Contact Resistance | Datasheet | Technical Drawing |
|---|---|---|---|---|---|---|
| 3 Pin | ||||||
| 3 Panel Type Female | 22A | 500V | 2500V | <1mΩ |
|
|
| 3 Cable Type Male | 22A | 500V | 2500V | <1mΩ |
|
|
| 4 Pin | ||||||
| 4 Panel Type Female | 22A | 500V | 2500V | <1mΩ |
|
|
| 4 Cable Type Male | 22A | 500V | 2500V | <1mΩ |
|
|
| 10 Pin | ||||||
| 10 Panel Type Female | 10A | 250V | 2500V | <3mΩ |
|
|
| 10 Cable Type Male | 10A | 250V | 2500V | <3mΩ |
|
|
| 12 Pin | ||||||
| 12 Panel Type Female | 10A | 250V | 2500V | <3mΩ |
|
|
| 12 Cable Type Male | 10A | 250V | 2500V | <3mΩ |
|
|
| 19 Pin | ||||||
| 19 Panel Type Female | 3A | 125W | 1500V | <5mΩ |
|
|
| 19 Cable Type Male | 3A | 150W | 1500V | <5mΩ |
|
|
| 24 Pin | ||||||
| 24 Panel Type Female | 3A | 125V | 1500V | <5mΩ |
|
|
| 24 Cable Type Male | 3A | 125V | 1500V | <5mΩ |
|
