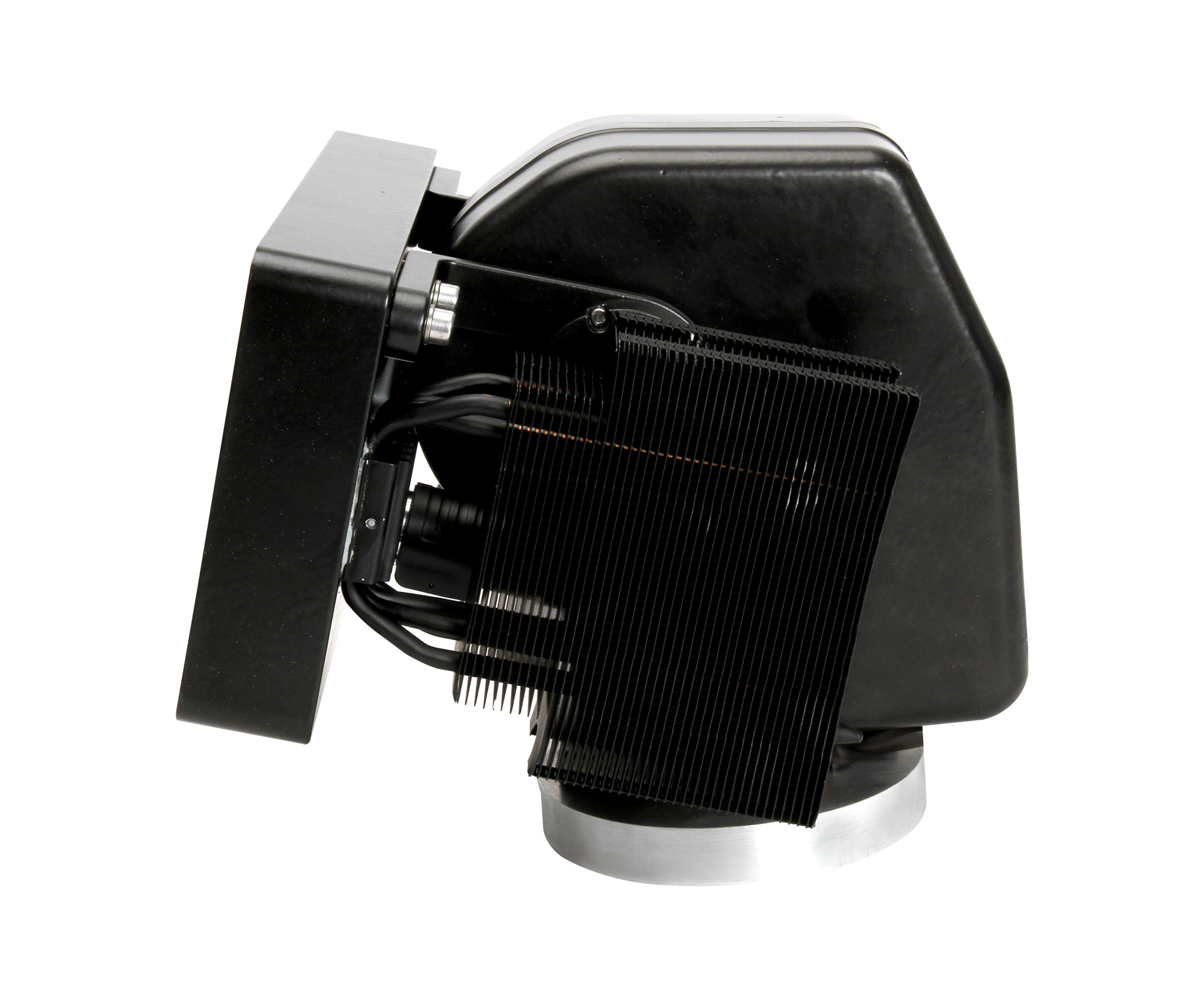

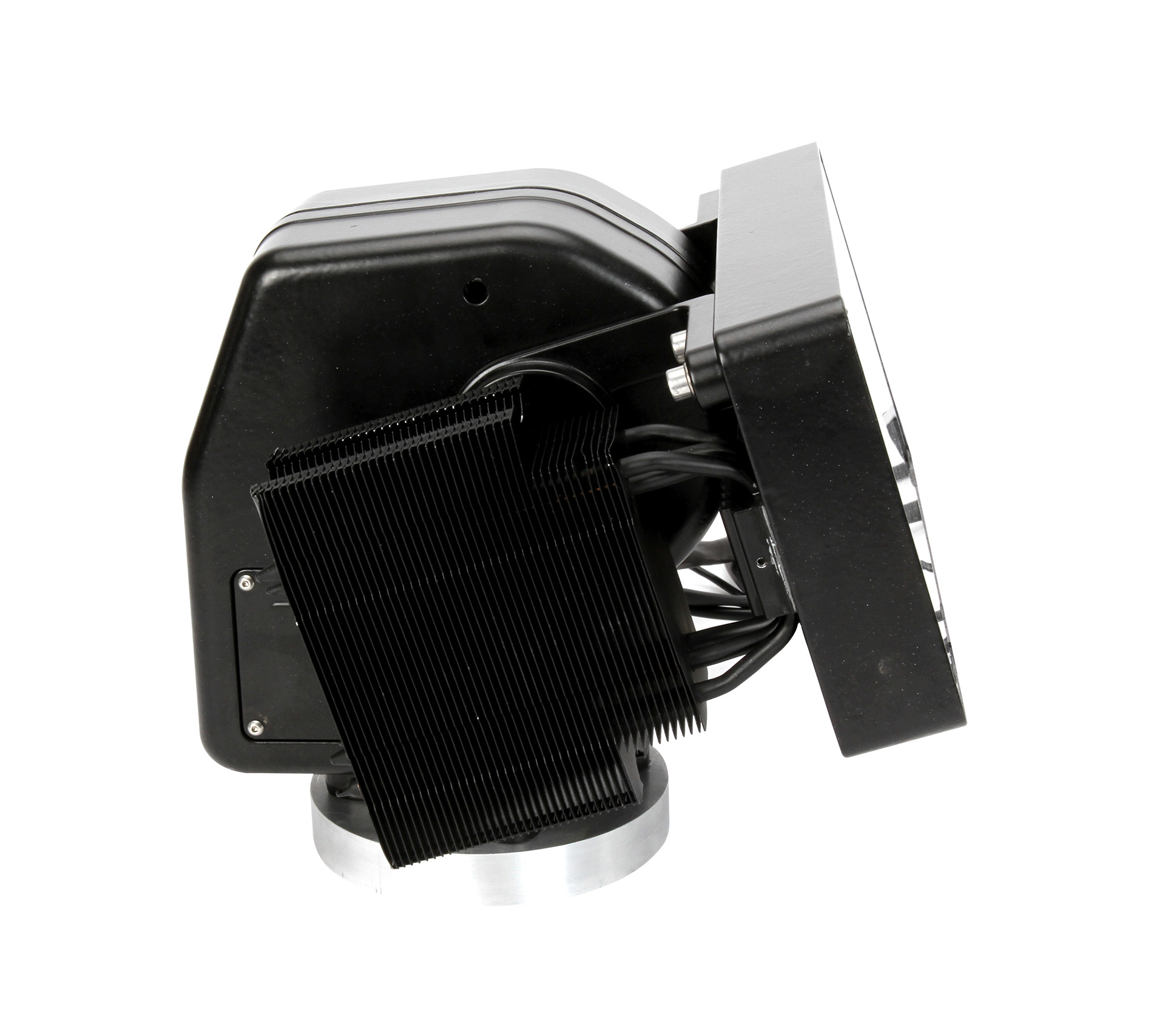

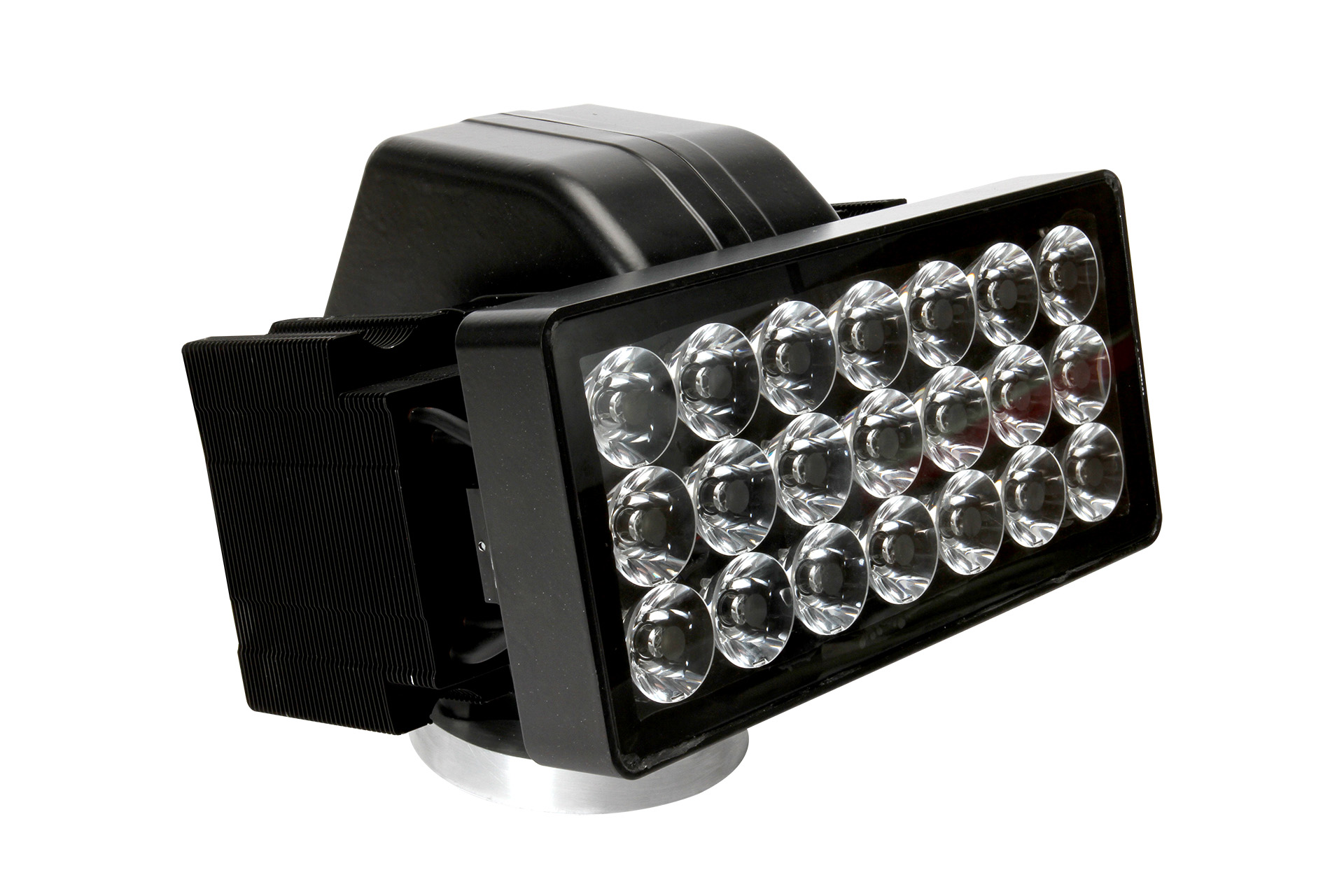

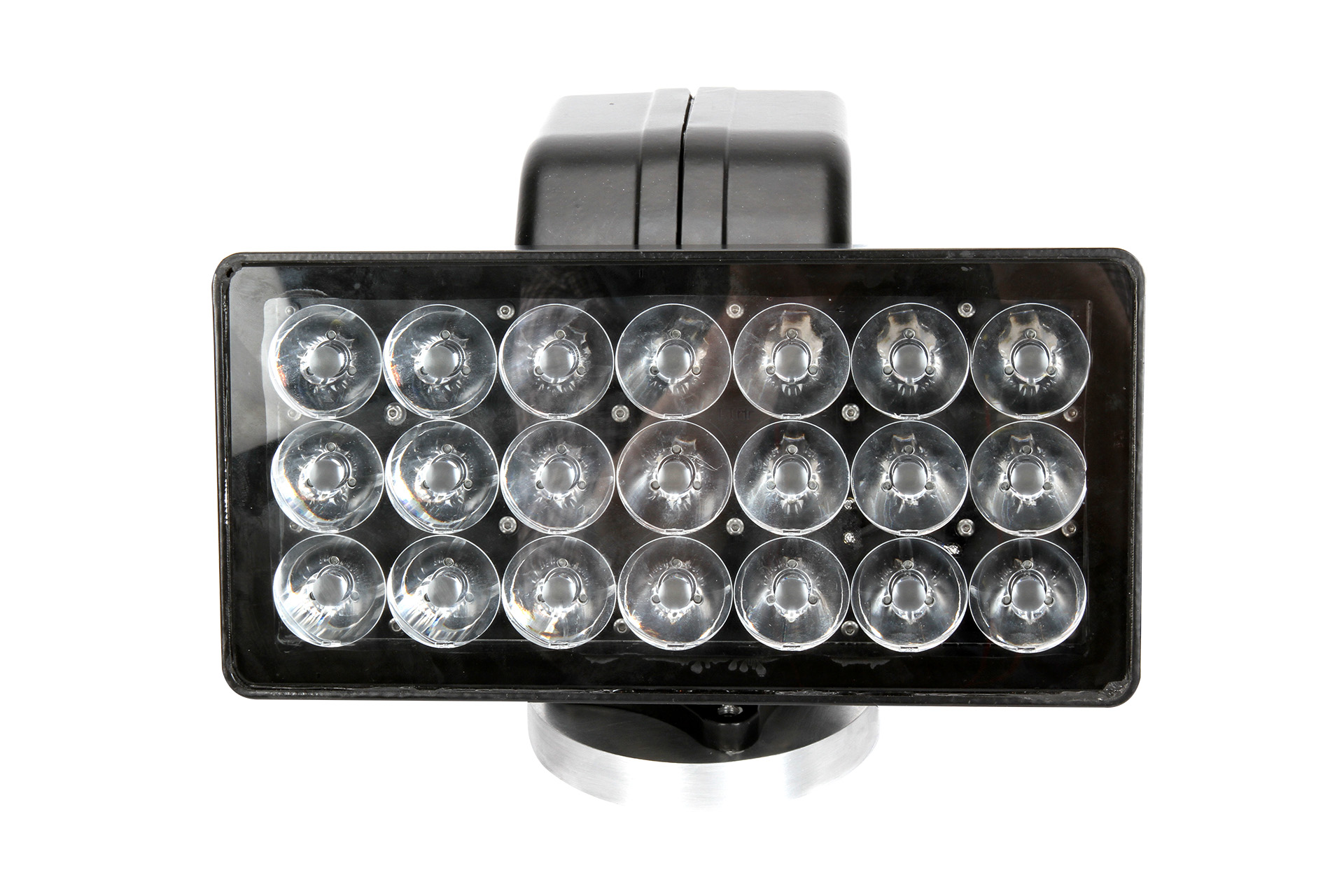

RL-100A Marin Projector
- It has a waterproof body. It has wide and narrow angle lighting options. It is a product designed for use in long-range, moving ships.
TECHNICIAL SPECIFICATIONS
| Body Material | Aluminum |
|---|---|
| Lens Angle | W.Angle:14° A.Angle:3,6° |
| Power Consumption | W.Angle: 52W / A. Angle: 40W |
| Source of Light | Power LED |
| Operating Voltage | 19VDC ~ 30VDC |
| Color Temperature | W.Angle: 6500 / A. Angle: 5700 |
| CRI | >70 |
| IP Class | IP66,IP68 |
| Product Description | Operating Voltage | Power Consumption (W) | Luminous Flux (lm) | Datasheet | LDT | Technical Drawing |
|---|---|---|---|---|---|---|
| - | ||||||
| Marin RL-100A Projector | 19VDC ~ 30VDC | Wide Angle : 52W / Acute Angle: 40W | Wide Angle : 6290 / Acute Angle: 3920 |
