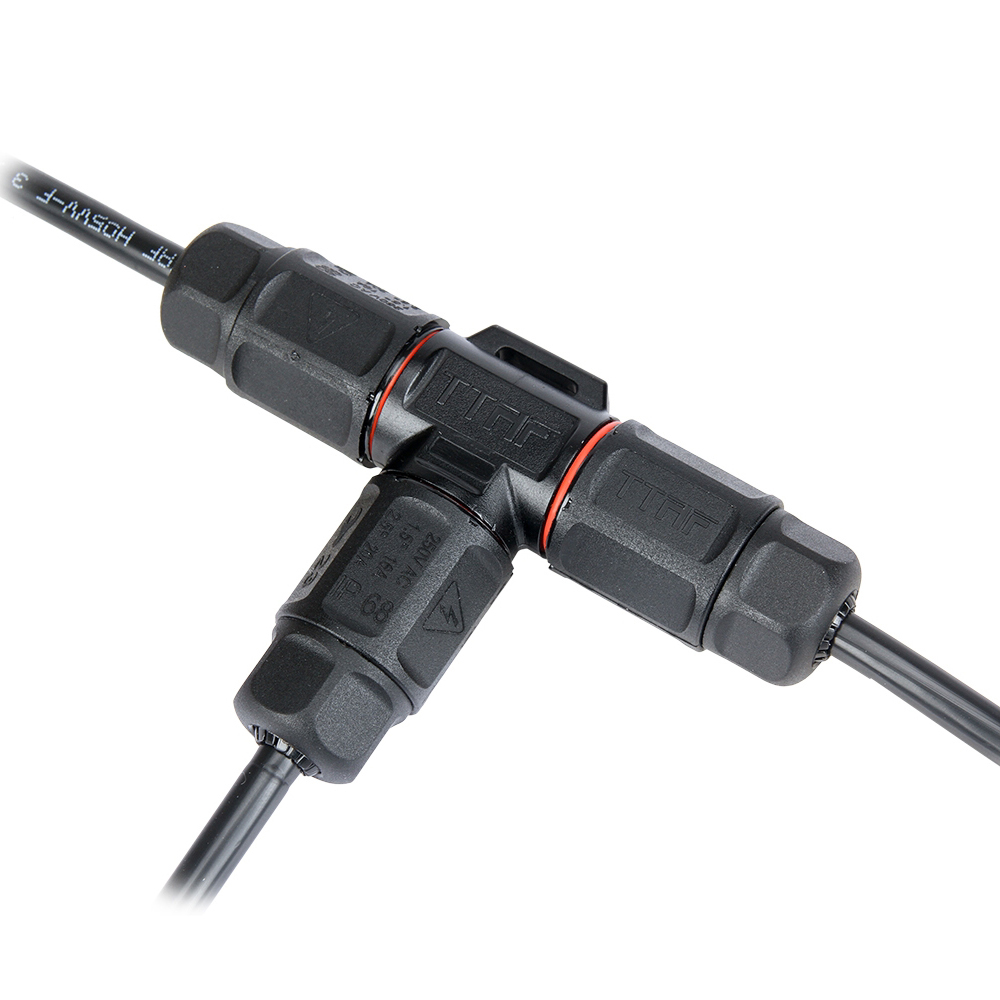

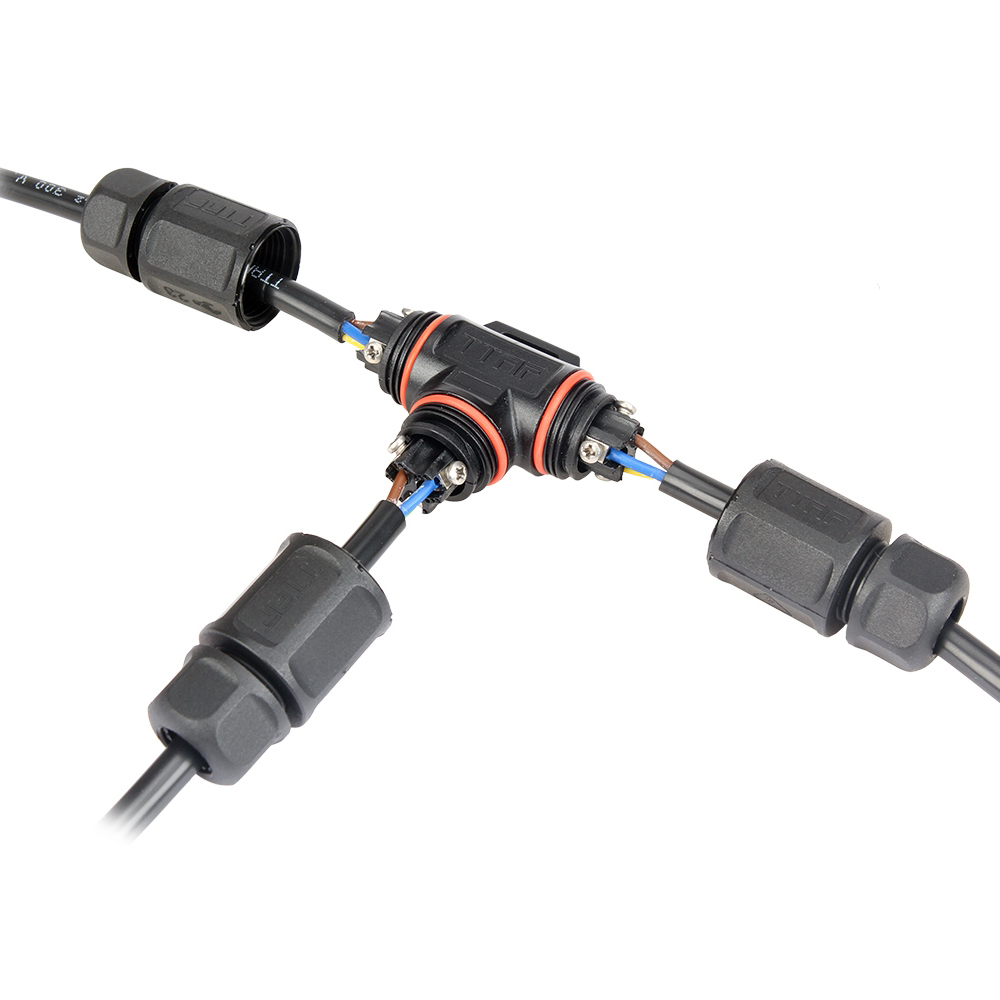

Field Mount 3 Pin 'T' Connector with Screw Connection
Product Code: WPT-0303M20
TECHNICIAL SPECIFICATIONS
| Durability Voltage | 1500VAC @ 60 s. |
|---|---|
| Number of Poles | 3 |
| Seal Material | Silicone |
| Mold Material | PA6 |
| Insulation Structure | 500 MΩ at 500VDC |
| Contact Resistance | 10 mΩ max |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
| Current Rating | 20A max |
| Voltage Rating | 250VAC max |
