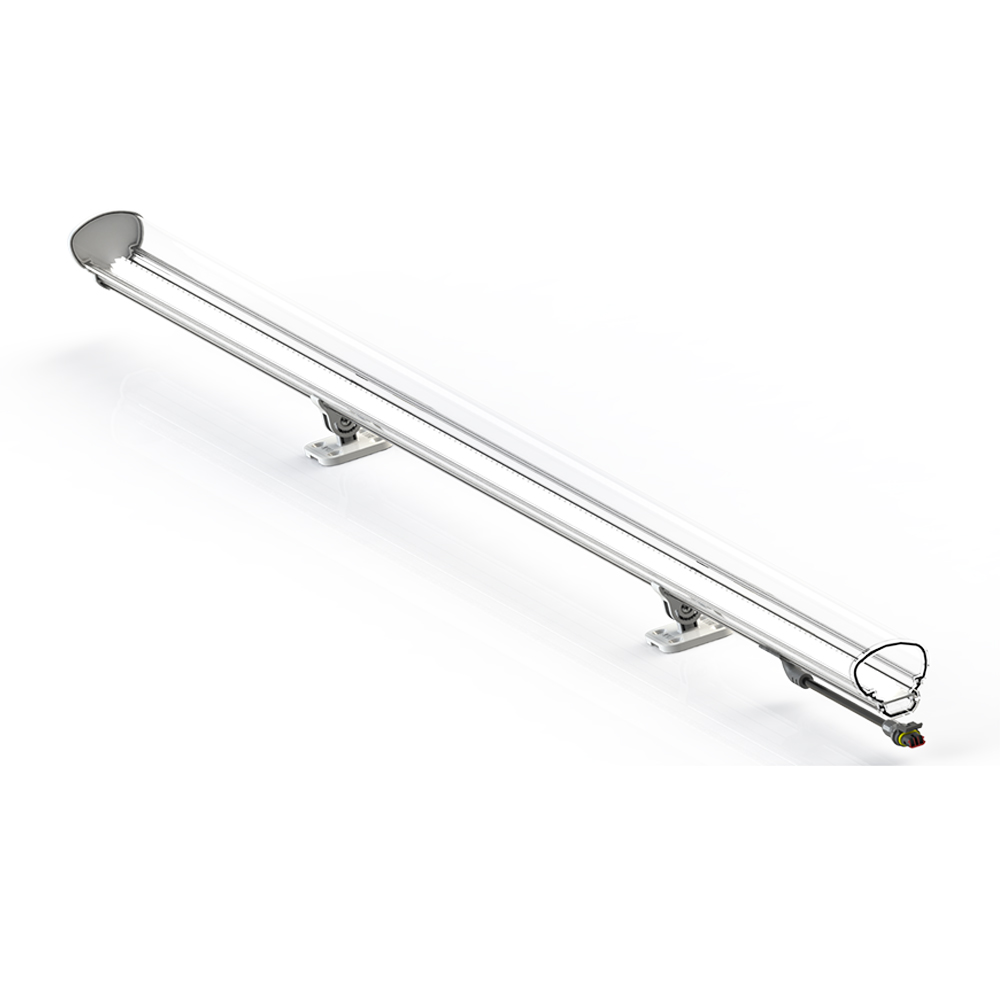

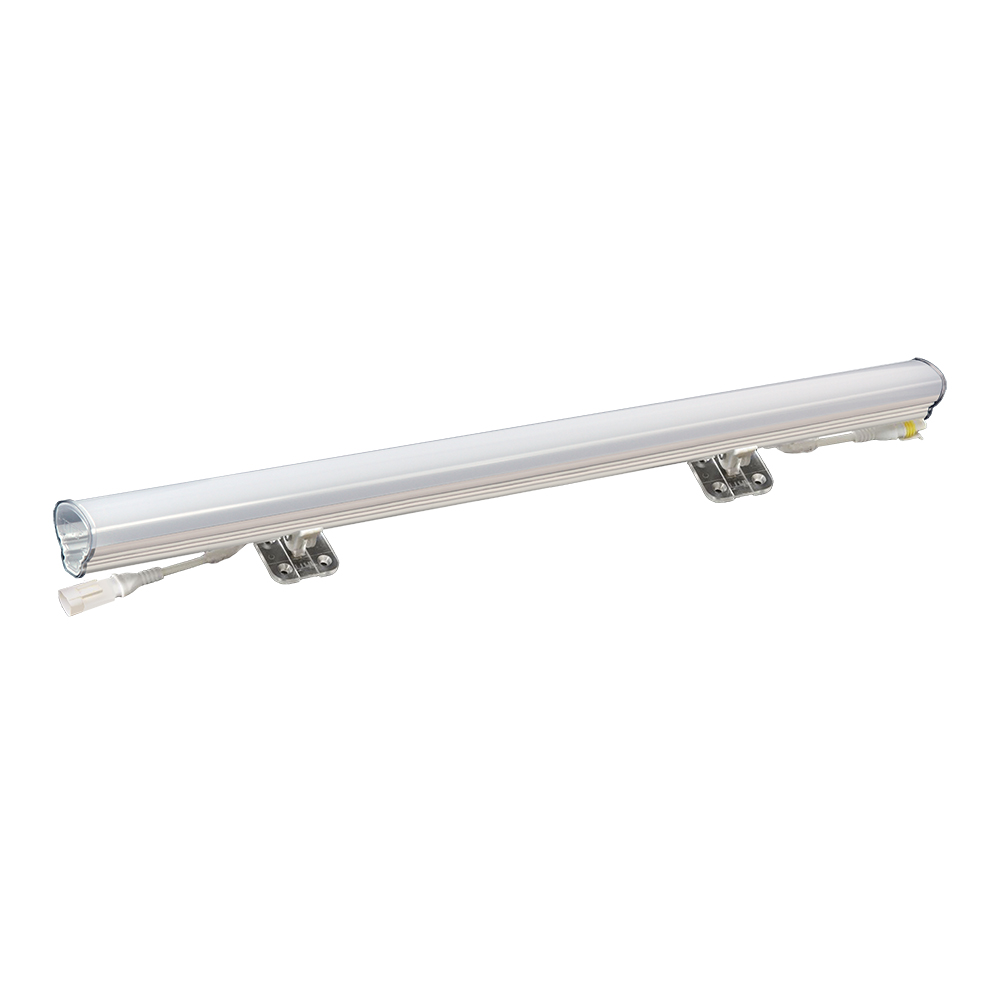

EVS-20 - Volans® V2 Linear LED Luminaire
The biggest advantages of Volans; streamlined profile design and light weight. It can be mounted directly on the surfaces of various structures in stages. Volans is designed to provide all the features you need in a reliable LED lighting solution.
TECHNICIAL SPECIFICATIONS
| Body Material | Polycarbonate |
|---|---|
| Lens Angle | 117° |
| Power Consumption | 16.5W, 18W, 24W |
| Source of Light | LED |
| Operating Voltage | 24V, 36V, 220V |
| Color Temperature | 2700K~6500K |
| CRI | >80 |
| IP Class | IP67 |
| Product Description | Operating Voltage | Power Consumption (W) | Luminous Flux (lm) | Datasheet | LDT | Technical Drawing |
|---|---|---|---|---|---|---|
| - | ||||||
| EVS-20 F Linear Led Tube | 19 ~ 30 VDC | 24W | 1722 |
|
||
| EVS-20 U Linear Led Tube | 200 ~ 240VAC | 33W | 4149 |
|
||
| EVS-20 G DMX Linear Led Tube | 34 ~ 40 VDC | 18W | 789lm |
|
