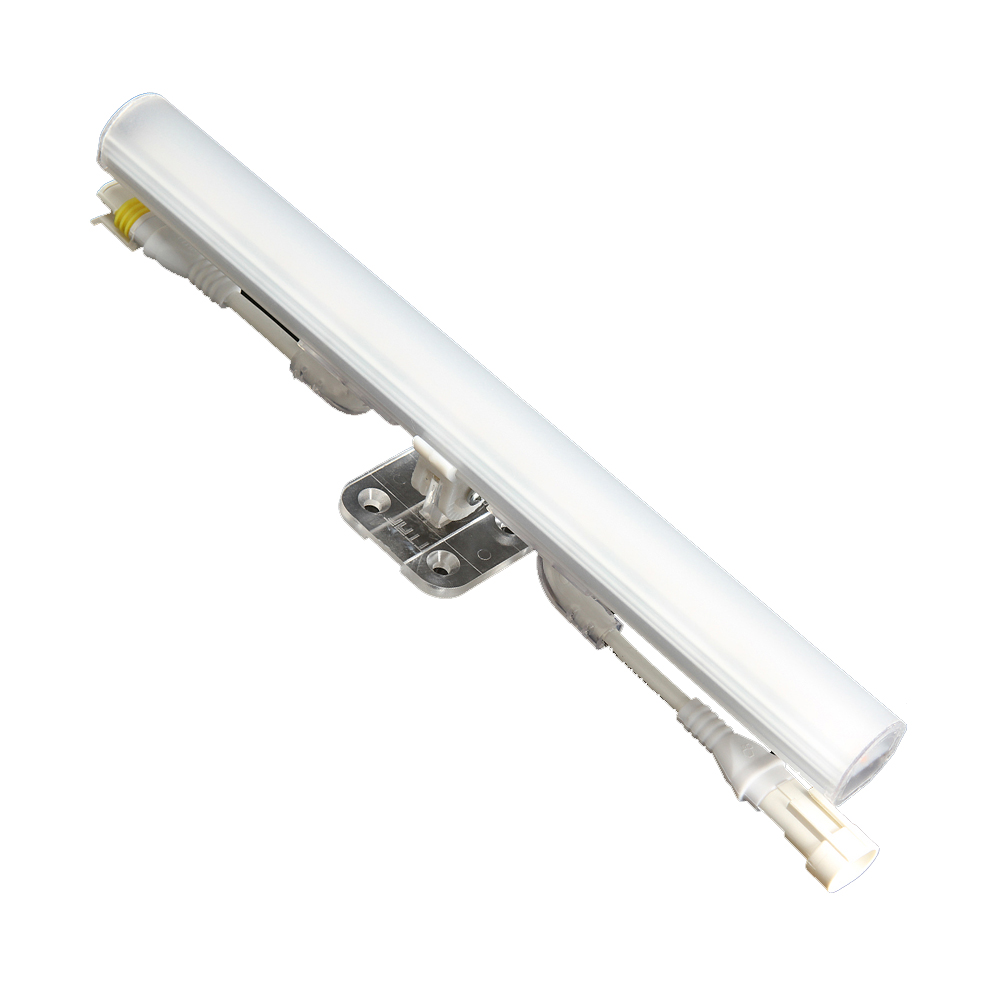

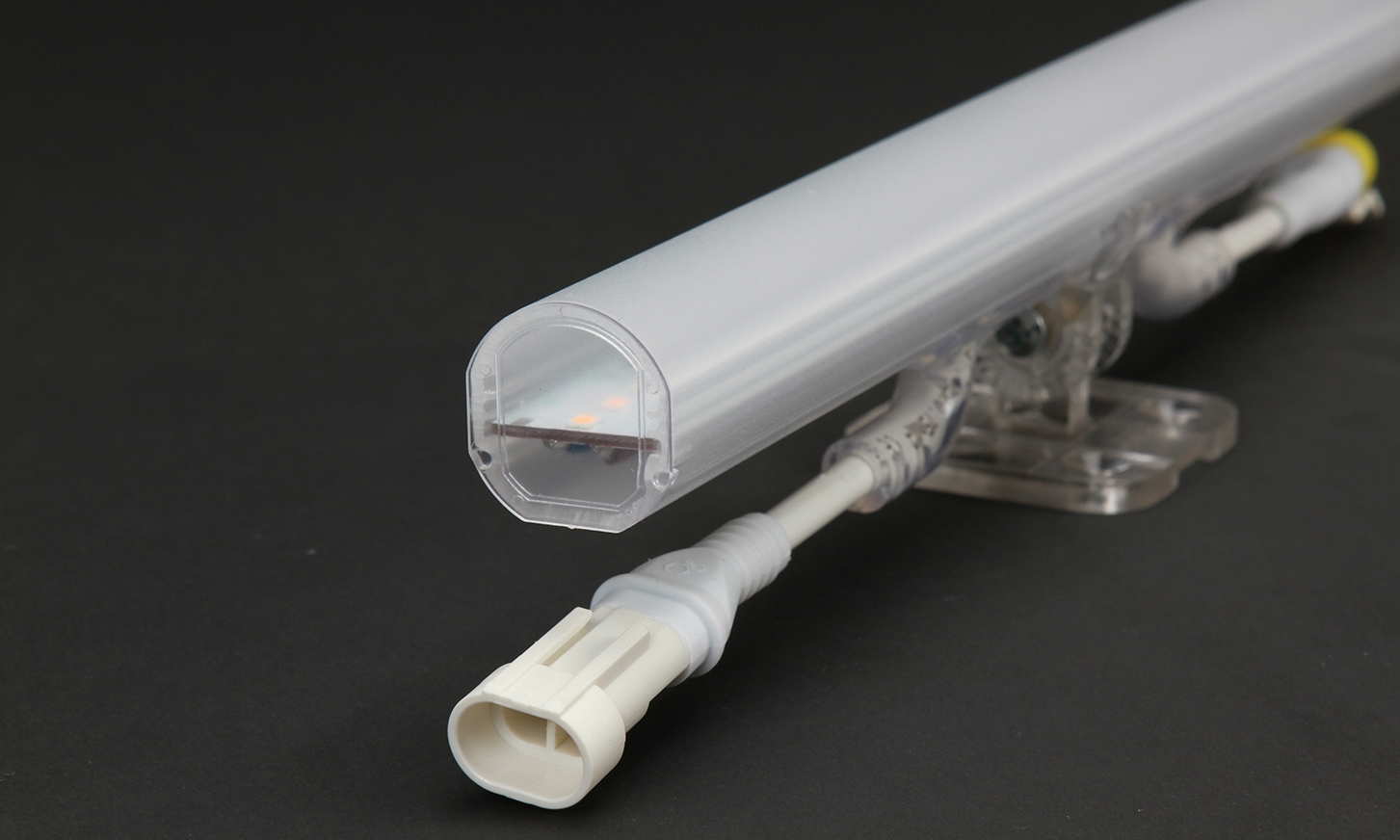

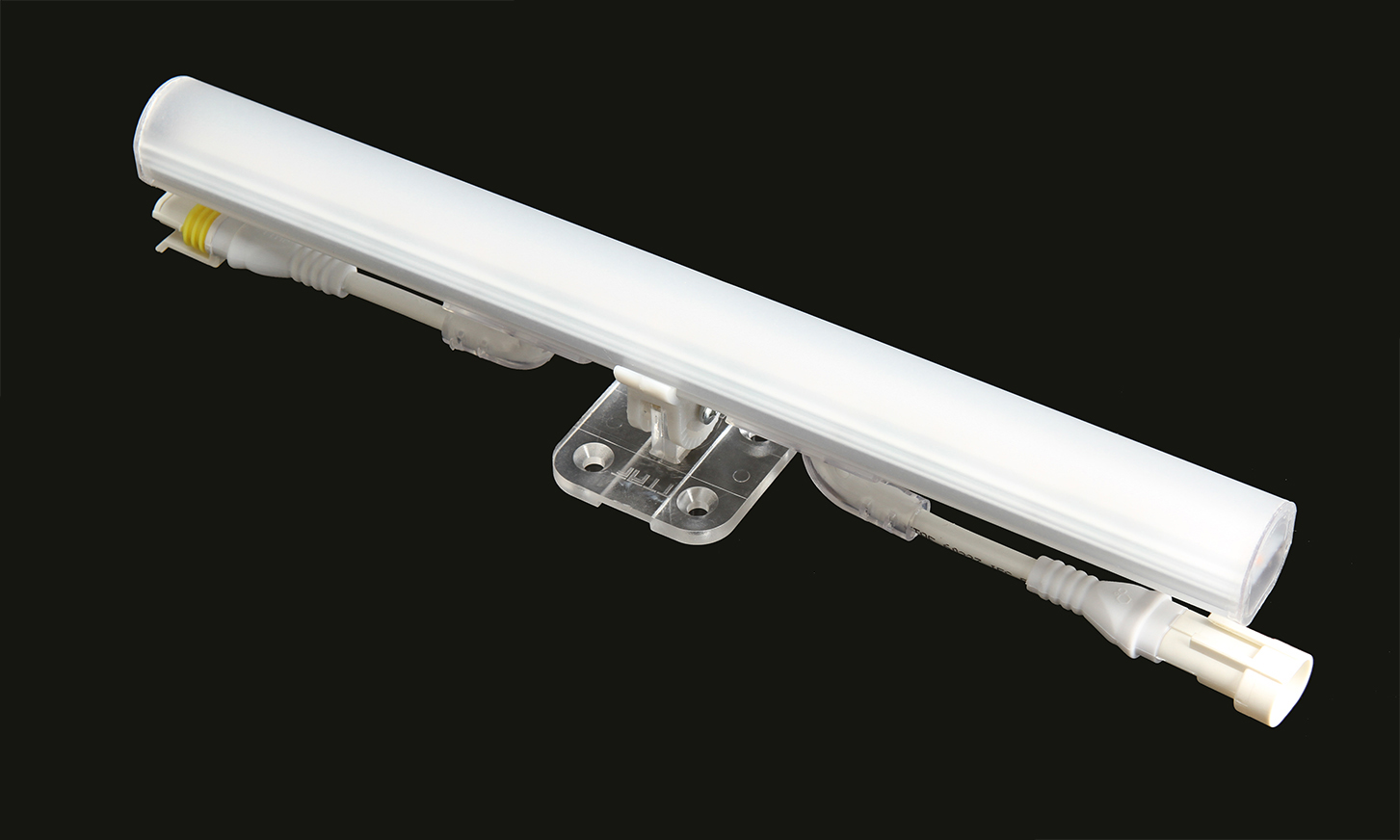

EVS-01 - Parion V1 Linear LED Luminaire

EVS-01 - Parion V1 Linear LED Luminaire

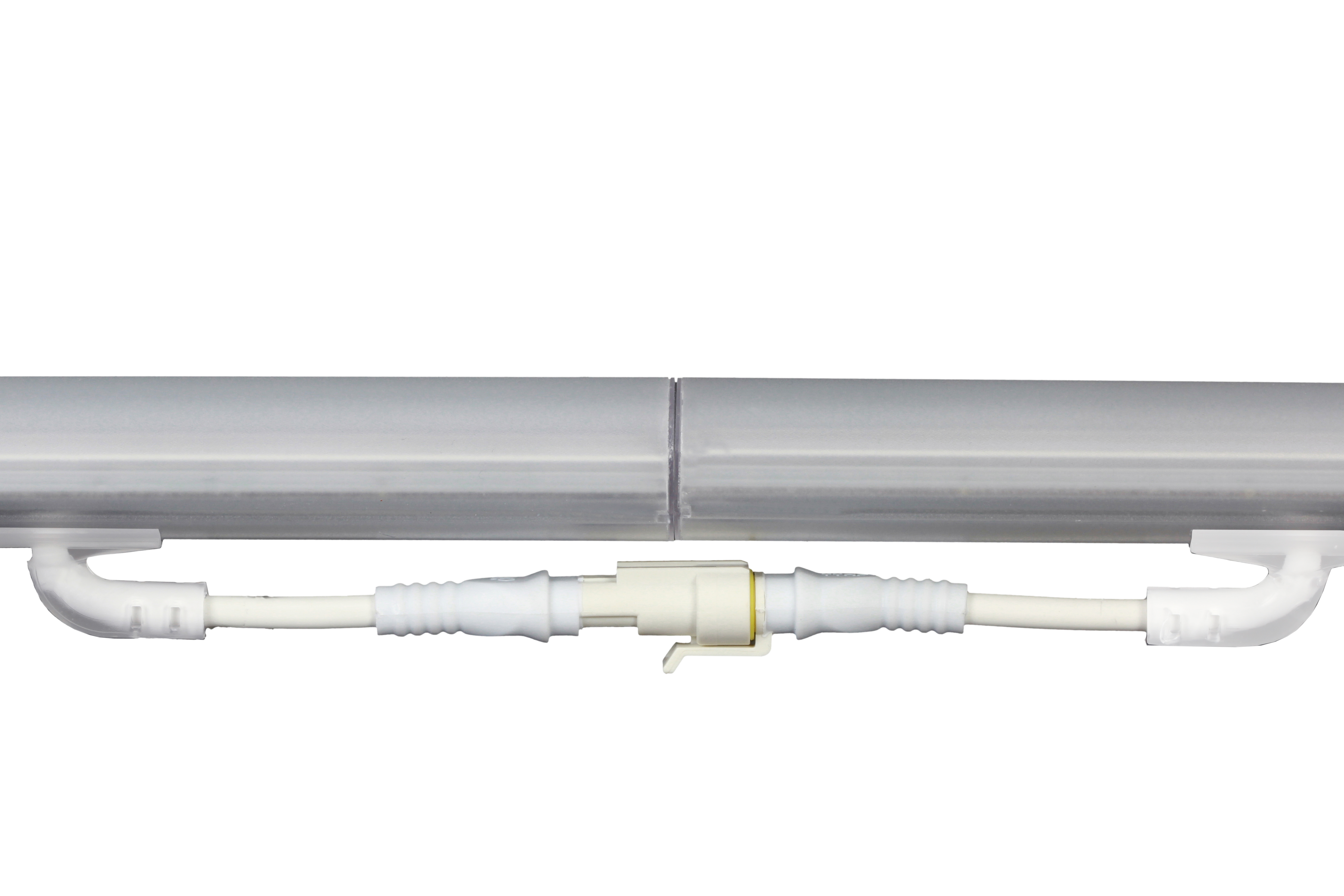

The biggest advantages of Parion; streamlined profile design and light weight. It can be mounted directly on the surfaces of various structures in stages. Volans is designed to provide all the features you need in a reliable LED lighting solution.

TECHNICIAL SPECIFICATIONS

Body Material Polycarbonate
Lens Angle 117°
Power Consumption 16.5W, 18W, 24W
Source of Light LED
Operating Voltage 24V, 36V, 220V
Color Temperature 2700K~6500K
CRI >80
IP Class IP67

EVS-01 - Parion V1 Linear LED Luminaire

Product Description Operating Voltage Power Consumption (W) Luminous Flux (lm) Datasheet LDT Technical Drawing
-
EVS-01 F Linear Led Tube 19 ~ 30 VDC 24W 2348lm
EVS-01 U Linear Led Tube 200 ~ 240VAC 16.5W 2353lm
EVS-15 G DMX Linear Led Tube 34 ~ 40 VDC 18W 789lm
