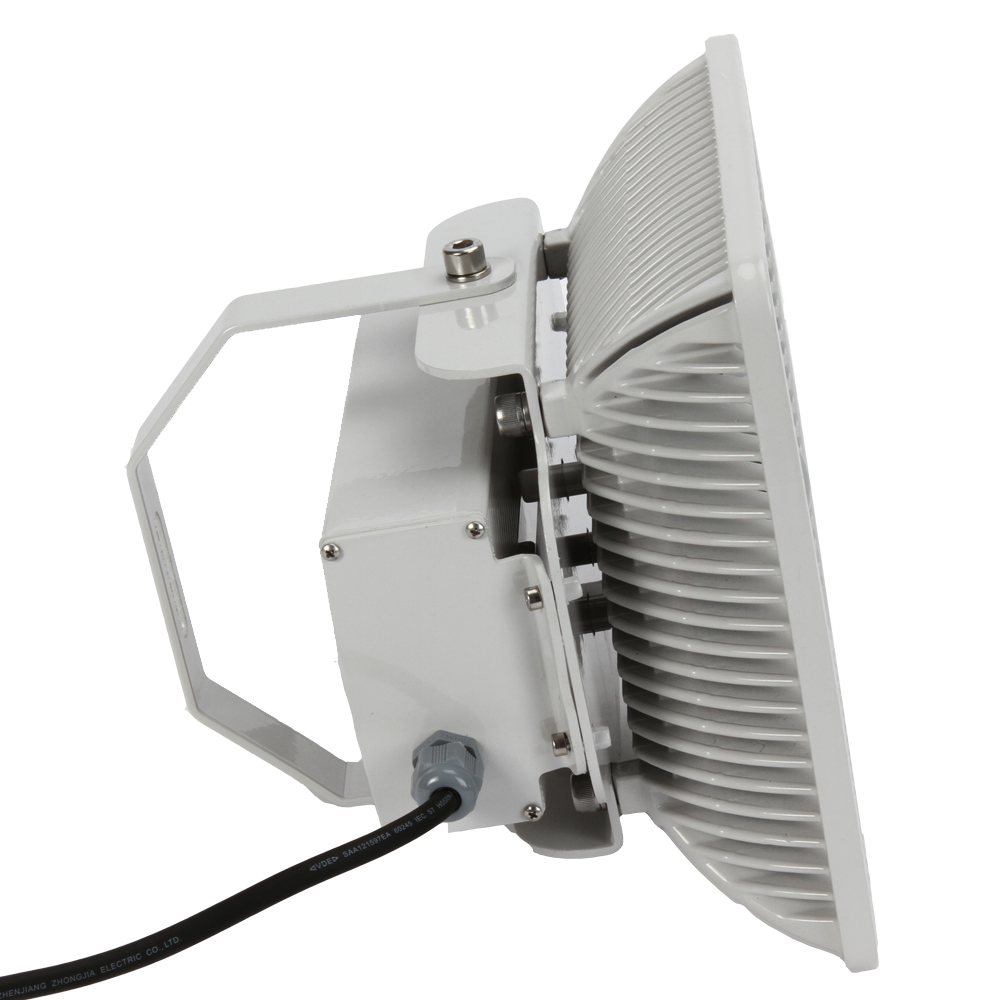

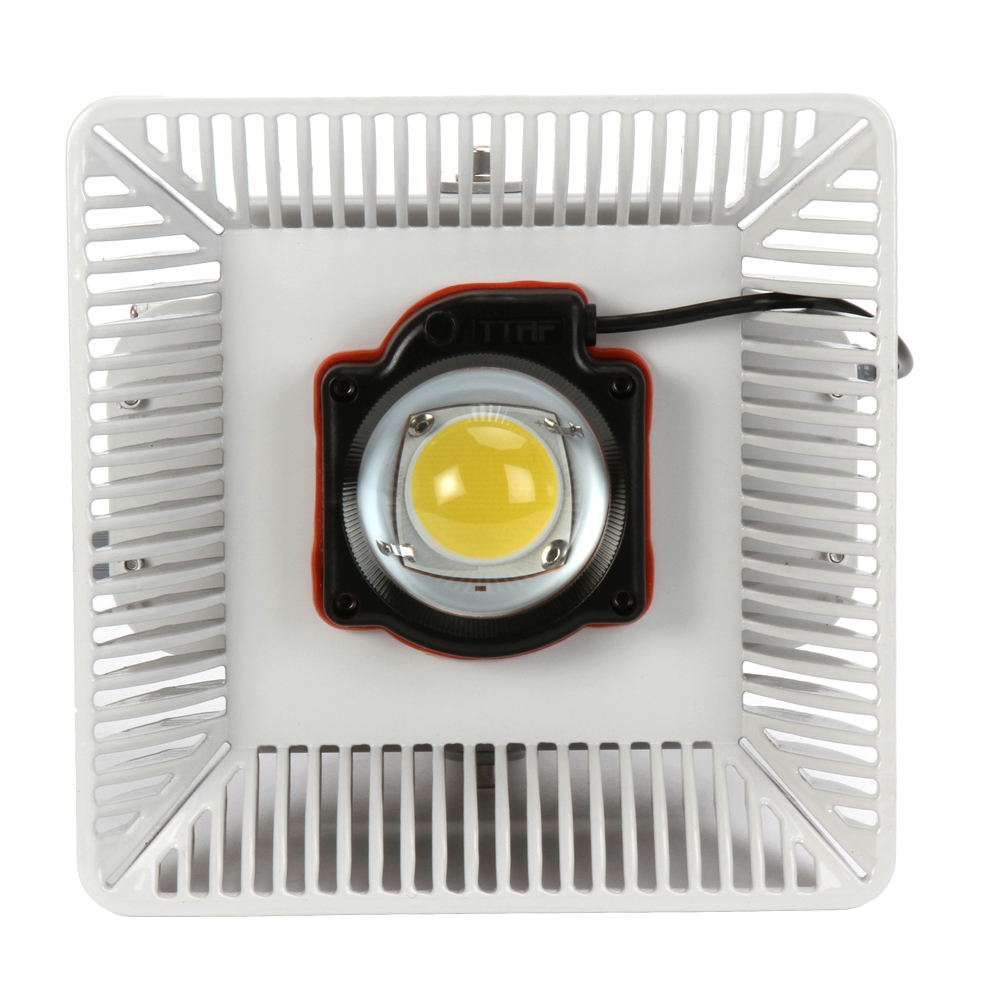

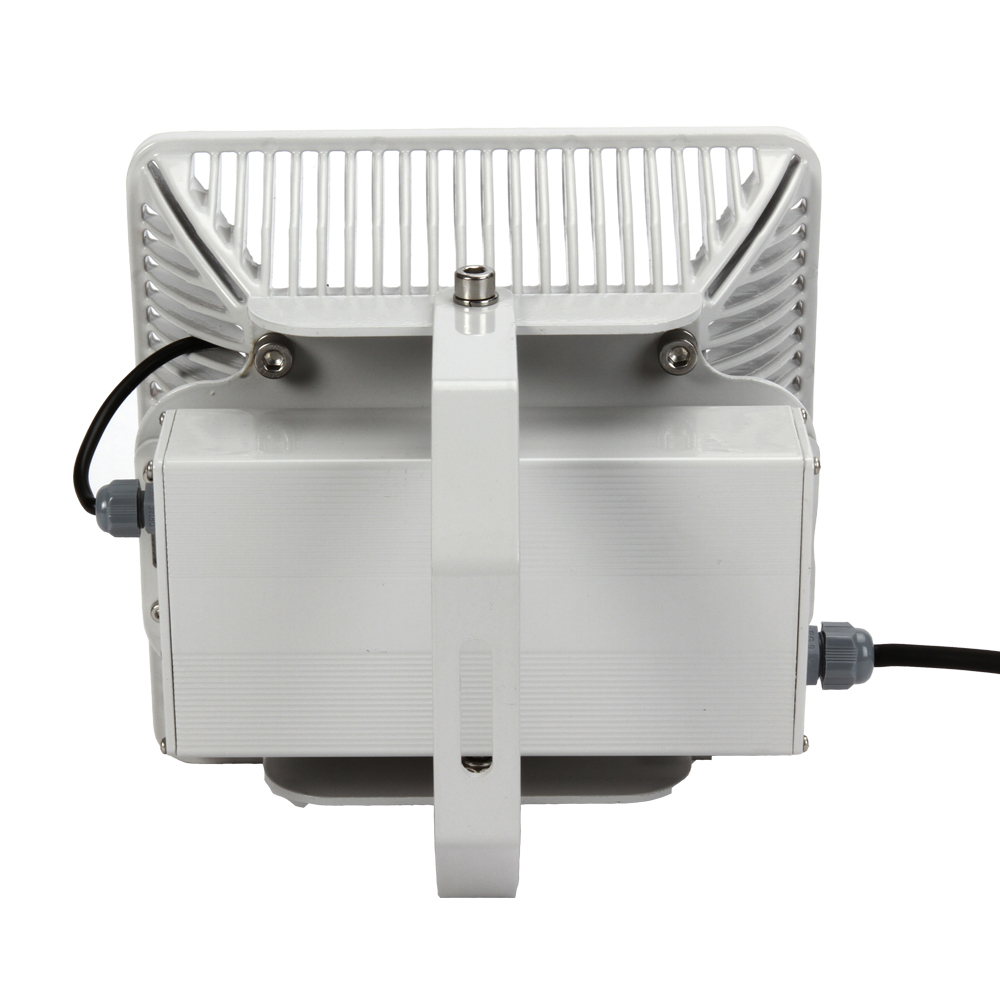

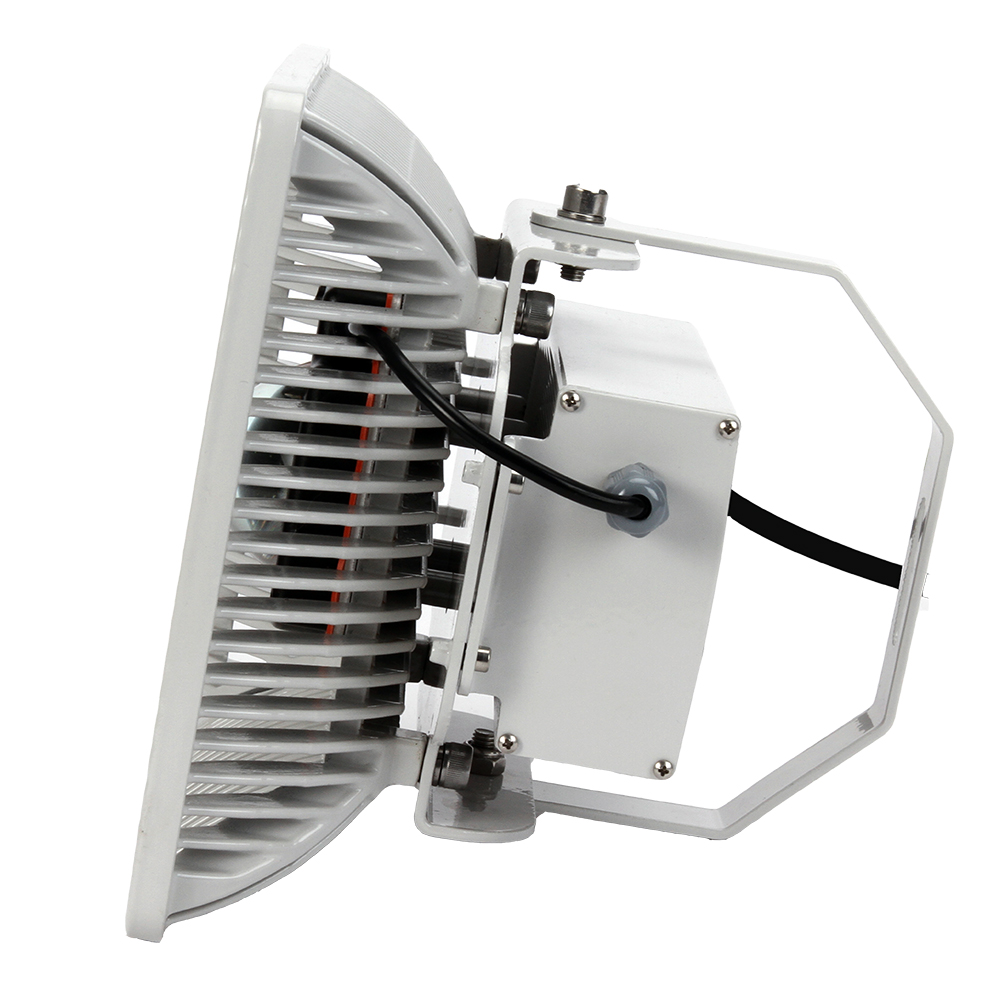

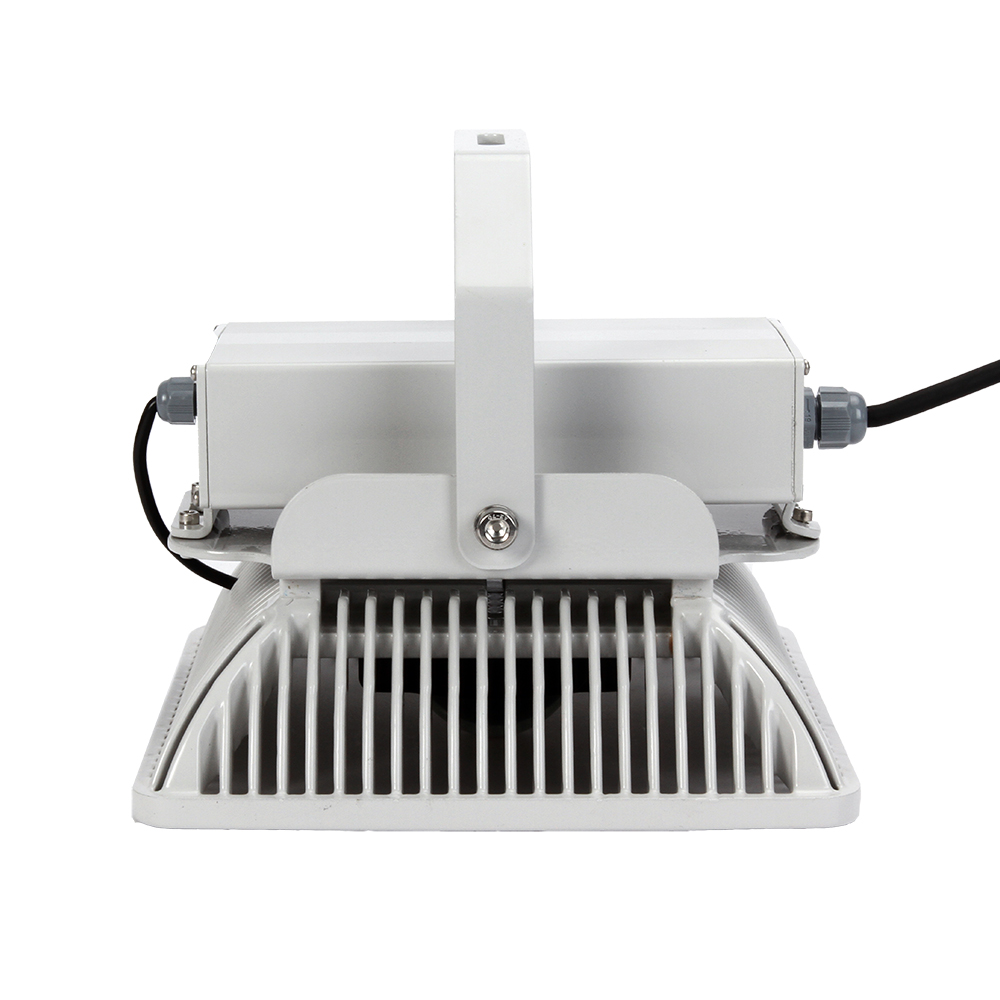

ESL-30 45~90W Projector
TECHNICIAL SPECIFICATIONS
| Body Material | Injection Aluminum |
|---|---|
| Lens Angle | - |
| Power Consumption | 45W, 60W, 75W, 90W |
| Source of Light | 1xArmageddon |
| Operating Voltage | 100~240 VAC - 50/60 Hz |
| Color Temperature | - |
| CRI | >70 |
| IP Class | IP66 |
| Product Description | Operating Voltage | Power Consumption (W) | Luminous Flux (lm) | Datasheet | LDT | Technical Drawing |
|---|---|---|---|---|---|---|
| 20° | ||||||
| ESL-30 45W Projector | 100 - 240 VAC 50/60Hz | 45W | 6400 |
|
||
| ESL-30 60W Projector | 100 - 240 VAC 50/60Hz | 60W | 8200 |
|
||
| ESL-30 75W Projector | 100 - 240 VAC 50/60Hz | 75W | 9975 |
|
||
| ESL-30 90W Projector | 100 - 240 VAC 50/60Hz | 90W | 11500 |
|
||
| 45° | ||||||
| ESL-30 45W Projector | 100 - 240 VAC 50/60Hz | 45W | 7150 |
|
||
| ESL-30 60W Projector | 100 - 240 VAC 50/60Hz | 60W | 9250 |
|
||
| ESL-30 75W Projector | 100 - 240 VAC 50/60Hz | 75W | 11175 |
|
||
| ESL-30 90W Projector | 100 - 240 VAC 50/60Hz | 90W | 12800 |
|
||
| 60° | ||||||
| ESL-30 45W Projector | 100 - 240 VAC 50/60Hz | 45W | 7200 |
|
||
| ESL-30 60W Projector | 100 - 240 VAC 50/60Hz | 60W | 9300 |
|
||
| ESL-30 75W Projector | 100 - 240 VAC 50/60Hz | 75W | 11250 |
|
||
| ESL-30 90W Projector | 100 - 240 VAC 50/60Hz | 90W | 13200 |
|
||
| 90° | ||||||
| ESL-30 45W Projector | 100 - 240 VAC 50/60Hz | 45W | 7250 |
|
||
| ESL-30 60W Projector | 100 - 240 VAC 50/60Hz | 60W | 9400 |
|
||
| ESL-30 75W Projector | 100 - 240 VAC 50/60Hz | 75W | 11400 |
|
||
| ESL-30 90W Projector | 100 - 240 VAC 50/60Hz | 90W | 13000 |
|
||
| 110° | ||||||
| ESL-30 45W Projector | 100 - 240 VAC 50/60Hz | 45W | 7300 |
|
||
| ESL-30 60W Projector | 100 - 240 VAC 50/60Hz | 60W | 9500 |
|
||
| ESL-30 75W Projector | 100 - 240 VAC 50/60Hz | 75W | 11500 |
|
||
| ESL-30 90W Projector | 100 - 240 VAC 50/60Hz | 90W | 13250 |
|
