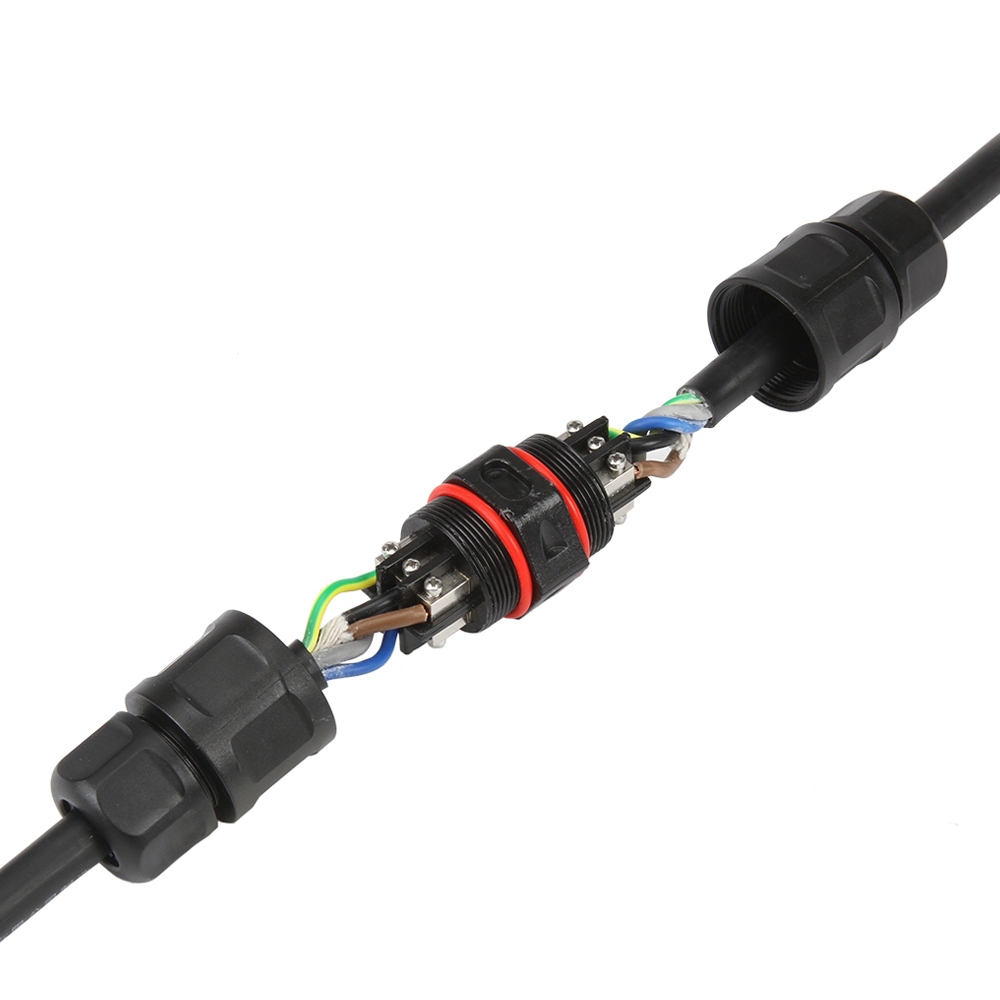

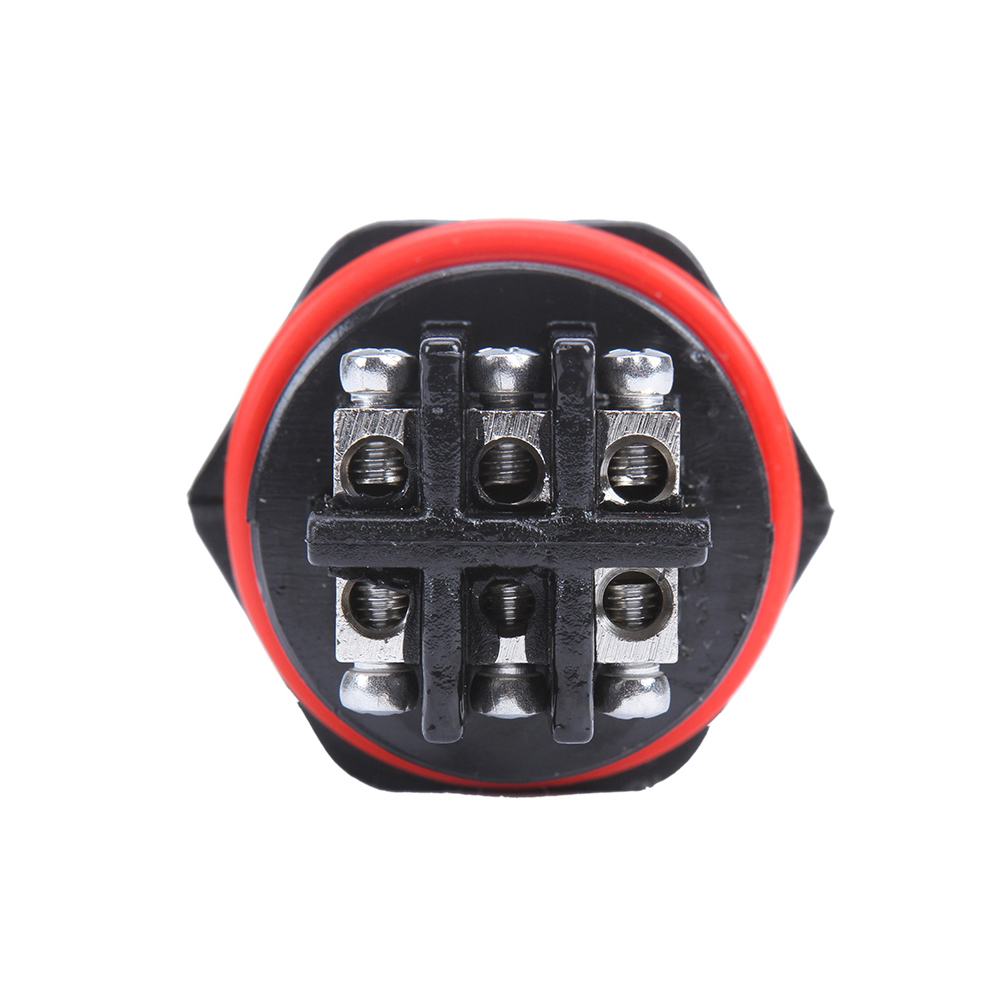

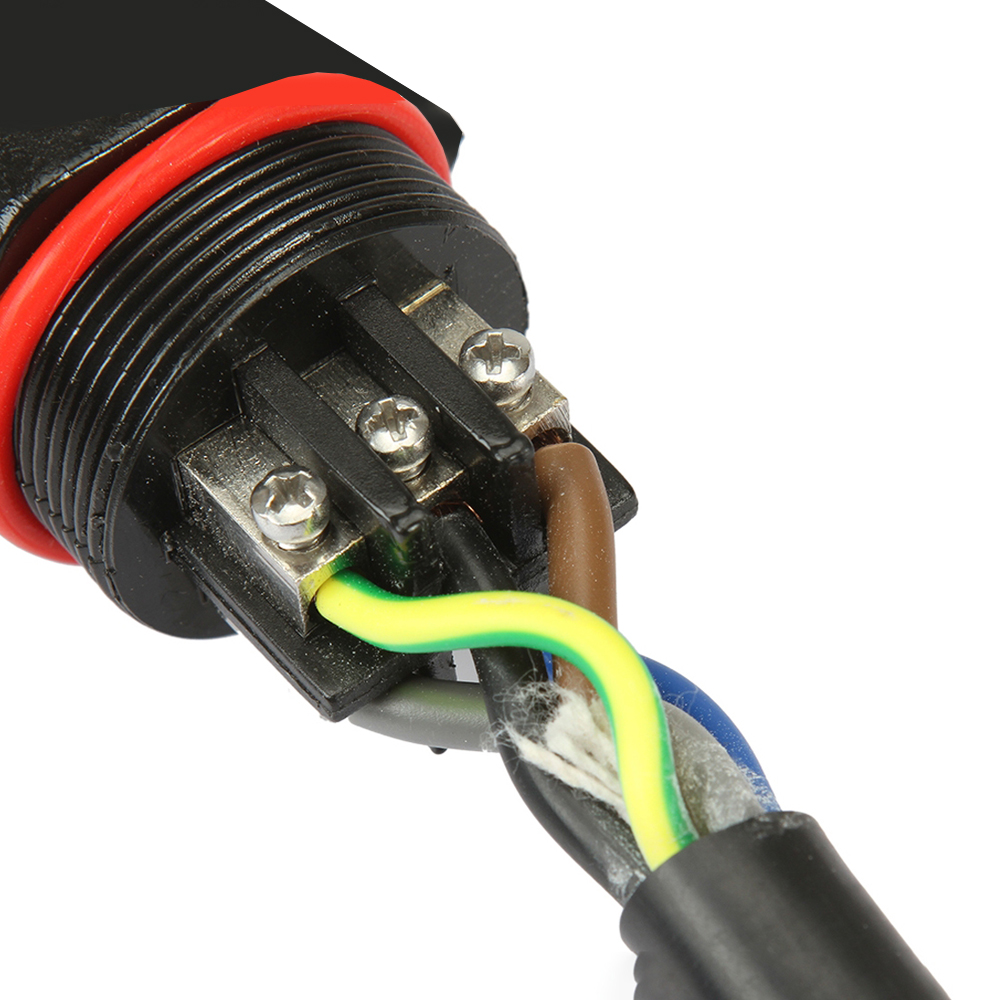

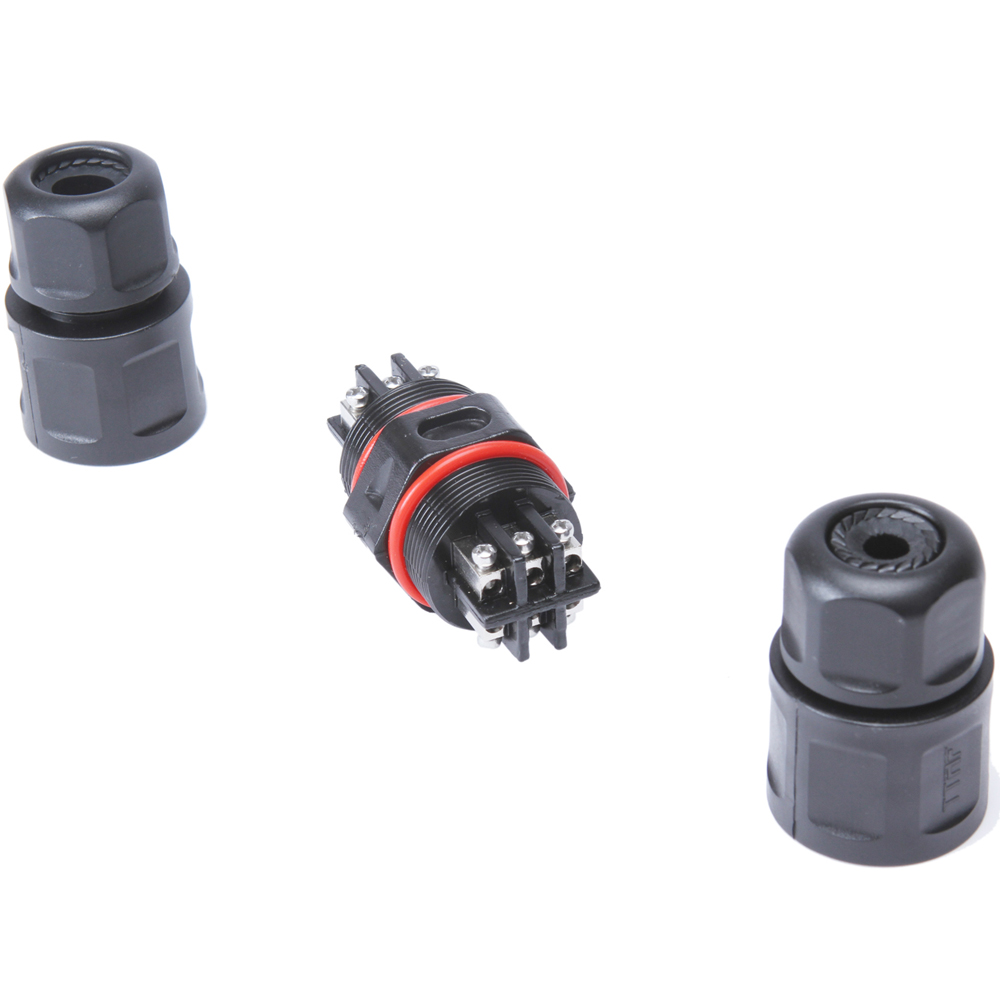

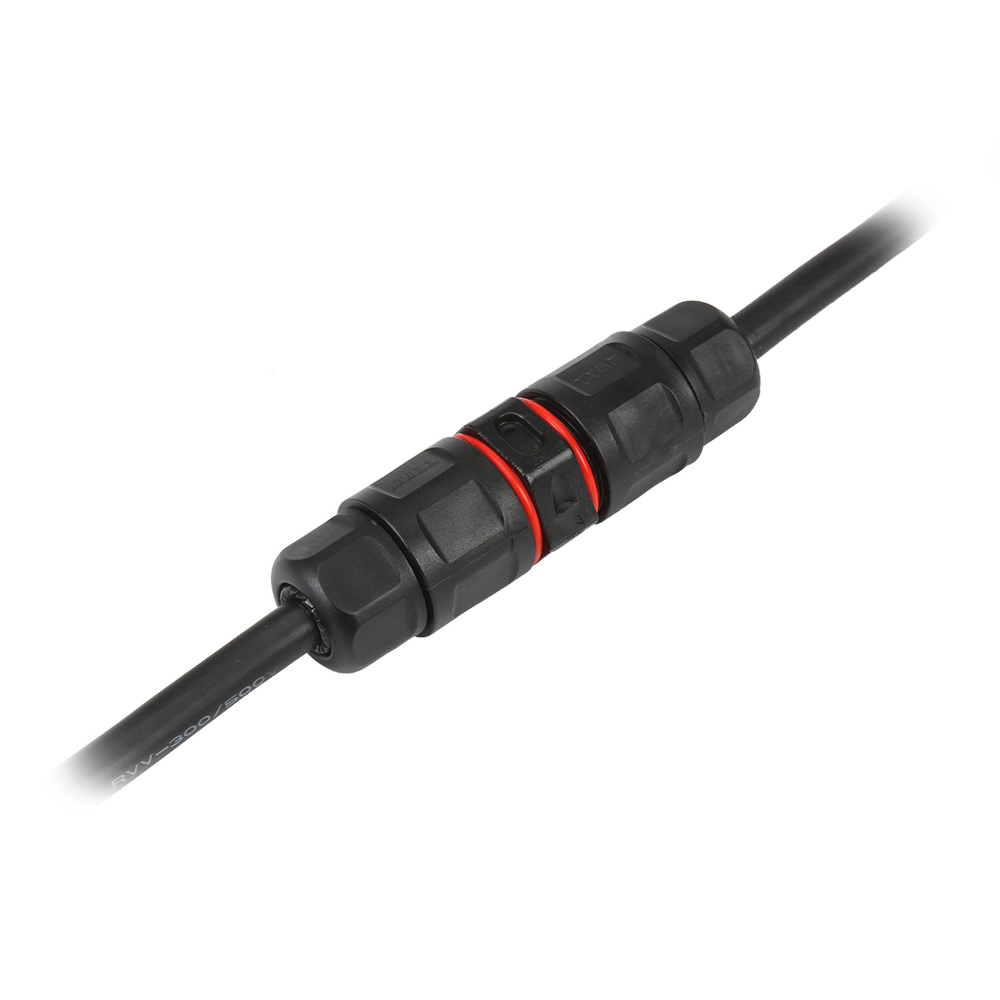

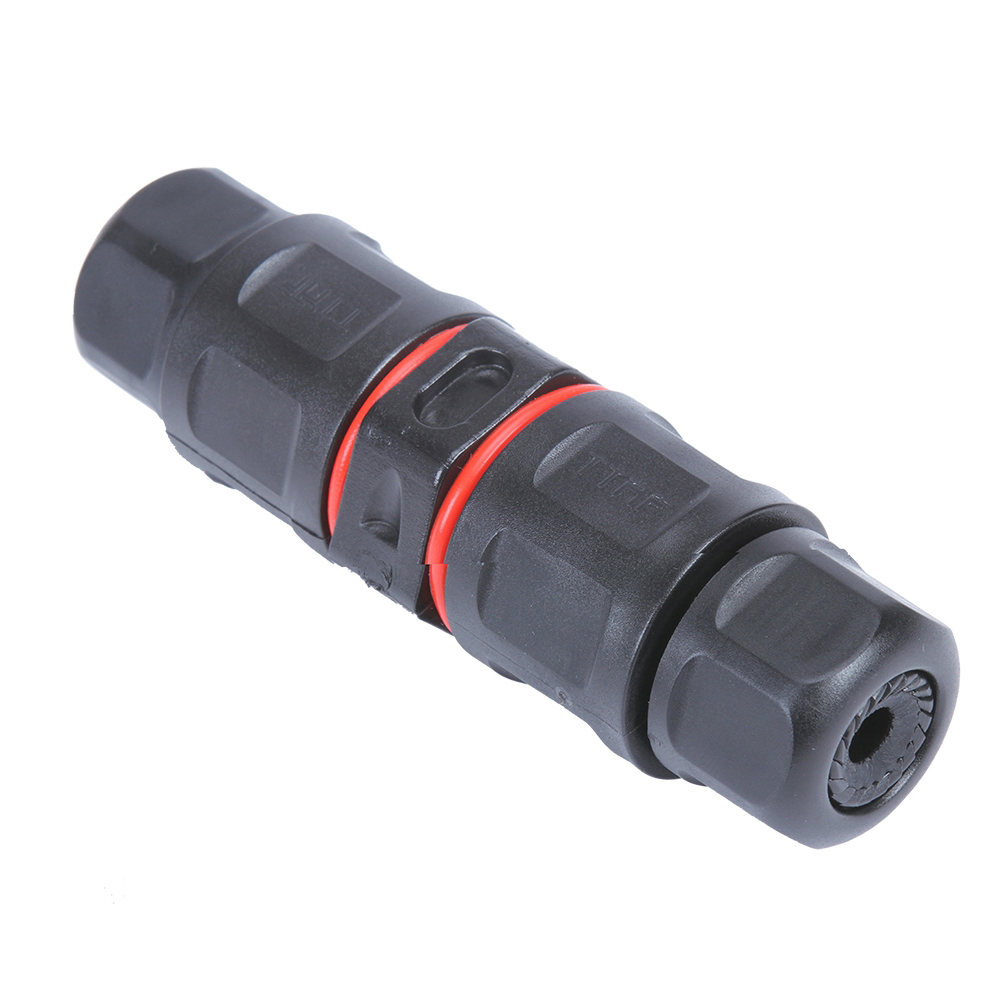

Field Assembly 6 Pin Power Connector
Product Code: WPI-0602M25
TECHNICIAL SPECIFICATIONS
| Durability Voltage | 1500VAC @ 60 s. |
|---|---|
| Number of Poles | 6 |
| Seal Material | Silicone |
| Mold Material | PA6 |
| Insulation Structure | 1000 MΩ at 1000VDC |
| Contact Resistance | 1 mΩ max |
| Max.Cable Cross Section Area | 0.75mm2 ~ 4mm2 |
| Current Rating | 25A max |
| Voltage Rating | 250VAC max |
| Product Description | Rated Current | Operating Voltage | Withstanding Voltage | Contact Resistance | Datasheet | Technical Drawing |
|---|---|---|---|---|---|---|
| 6 Pin | ||||||
| Field Assembly Power Connector | 1 mΩ max |
