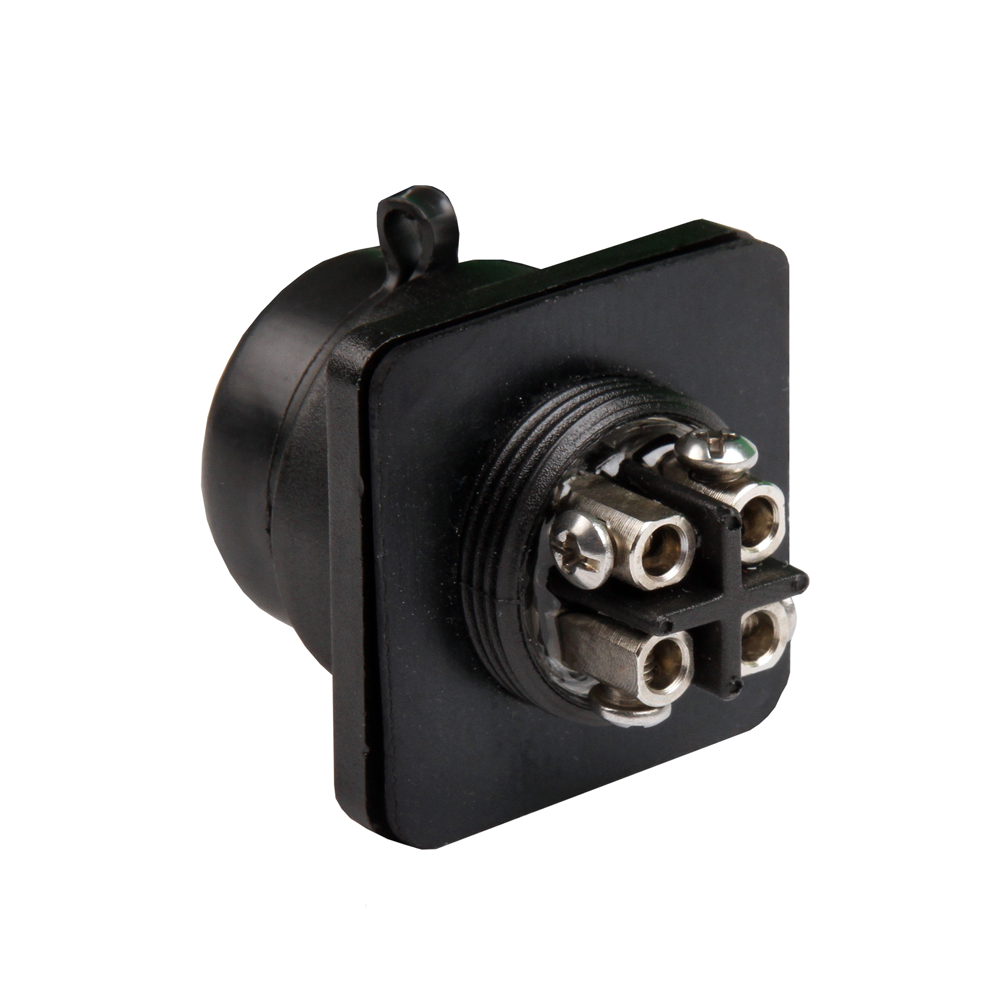

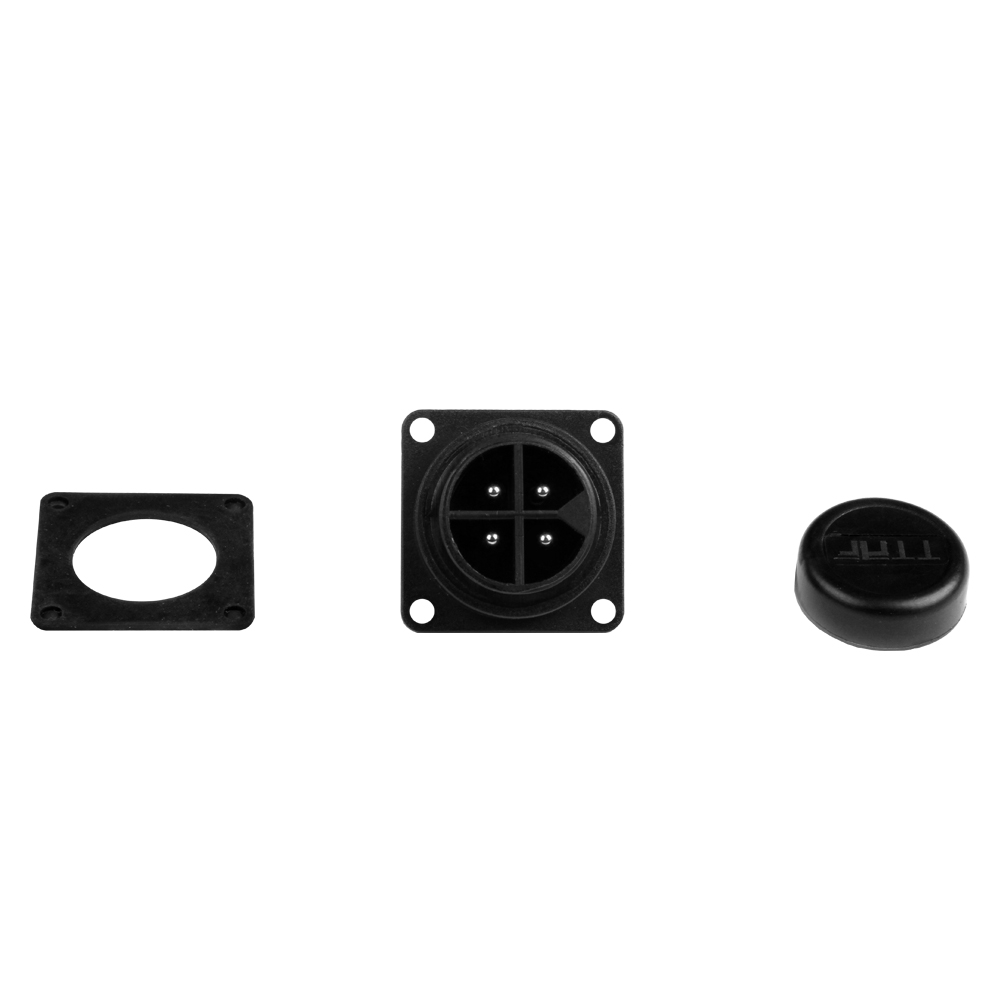

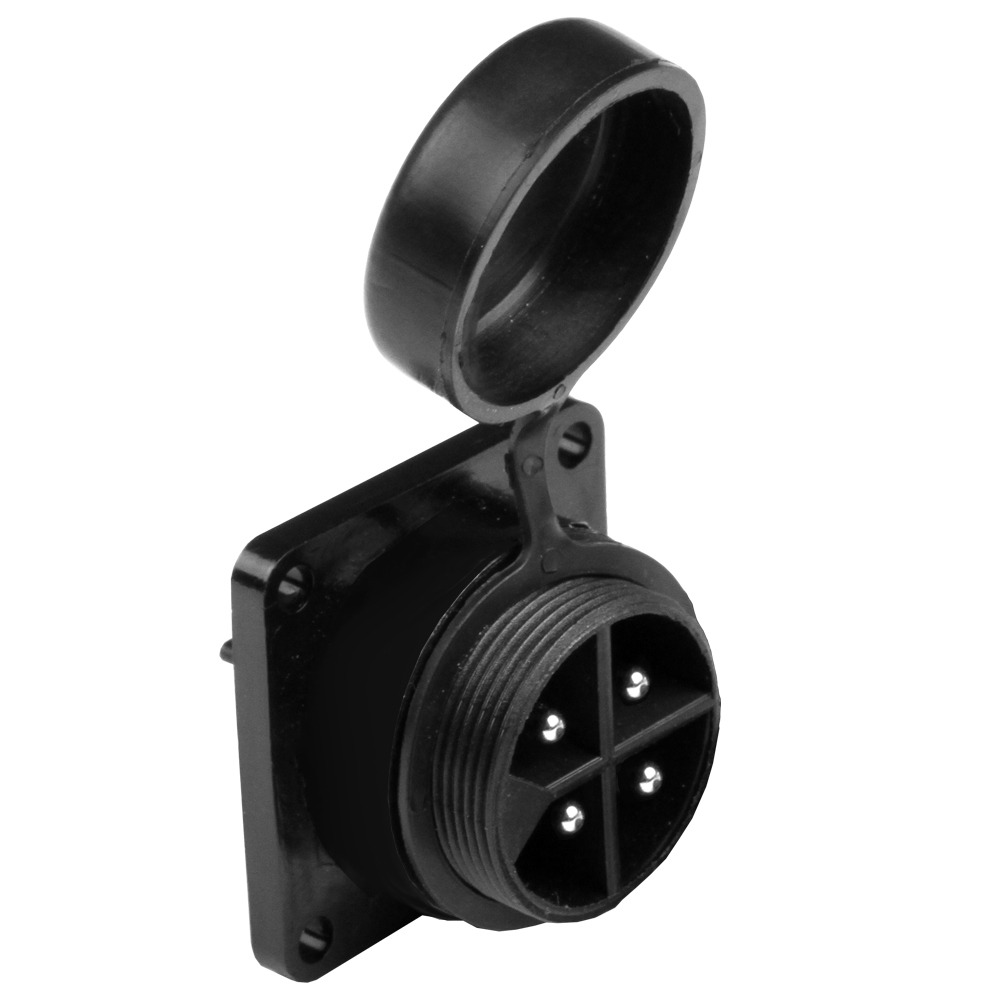

4 Pin Male Panel Type Field Assembly Connector
WPP-0400M20
TECHNICIAL SPECIFICATIONS
| Durability Voltage | 3000VAC @ 60s |
|---|---|
| Number of Poles | 4 |
| Seal Material | Silicone |
| Mold Material | PA6 |
| Insulation Structure | 500 mΩ at 500VDC |
| Contact Resistance | 10 mΩ max |
| Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
| Current Rating | 20A max |
| Voltage Value | 250VAC max |
| Product Description | Rated Current | Operating Voltage | Withstanding Voltage | Contact Resistance | Datasheet | Technical Drawing |
|---|---|---|---|---|---|---|
| 4 Pin | ||||||
| Male Panel Type | 10 mΩ max |
|
