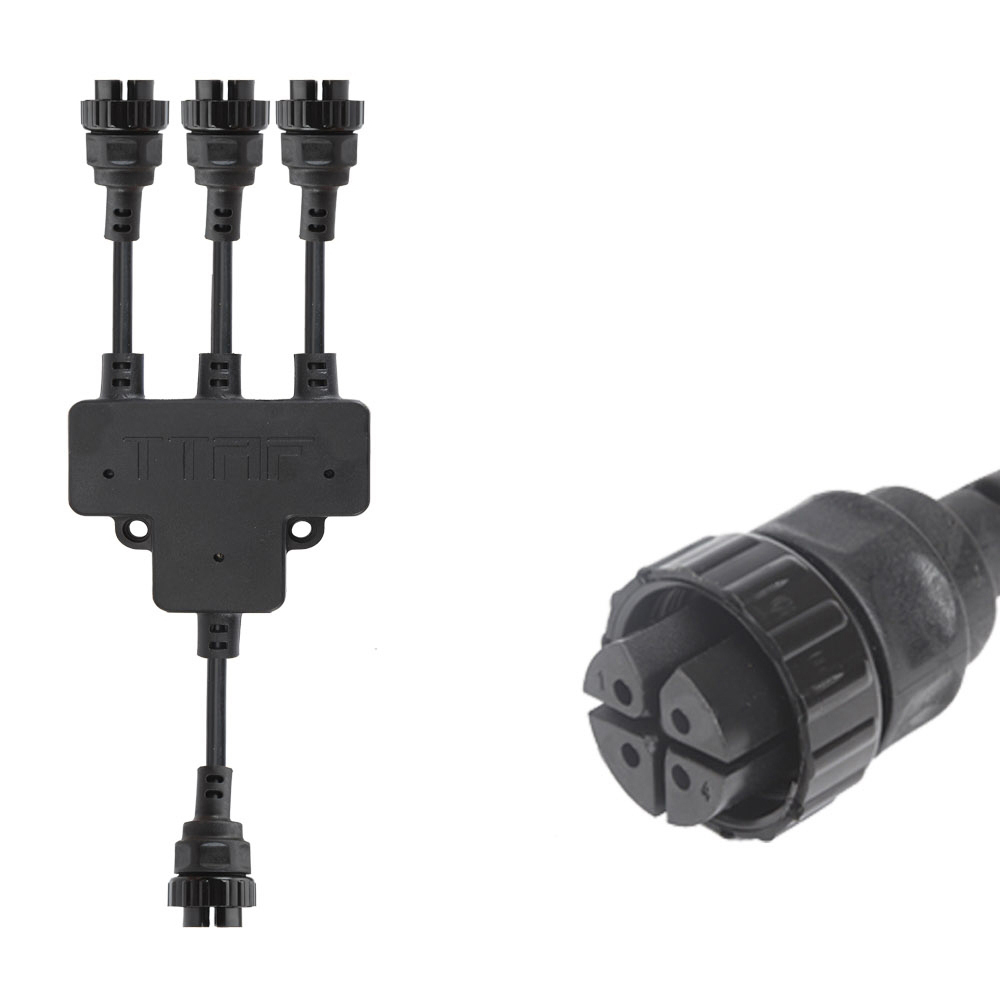

4 Pin Female Pluggable Field Assembly 1 In 3 Out Electrical Splitter
Product Code: WPS-0404N20F
TECHNICIAL SPECIFICATIONS
| Number of Poles | 4 |
|---|---|
| Durability Voltage | 3000VAC @ 60 s. |
| IP Rating | IP68 (10m / 60min) |
| Operating Temperature | -40°C ~ +85°C |
| Seal Material | Silicone |
| Mold Material | PA6 |
| Insulation Structure | 500 MΩ at 500VDC |
| Contact Resistance | 30 mΩ max |
| Current Rating | 20A max |
| Voltage Rating | 250VAC max |
