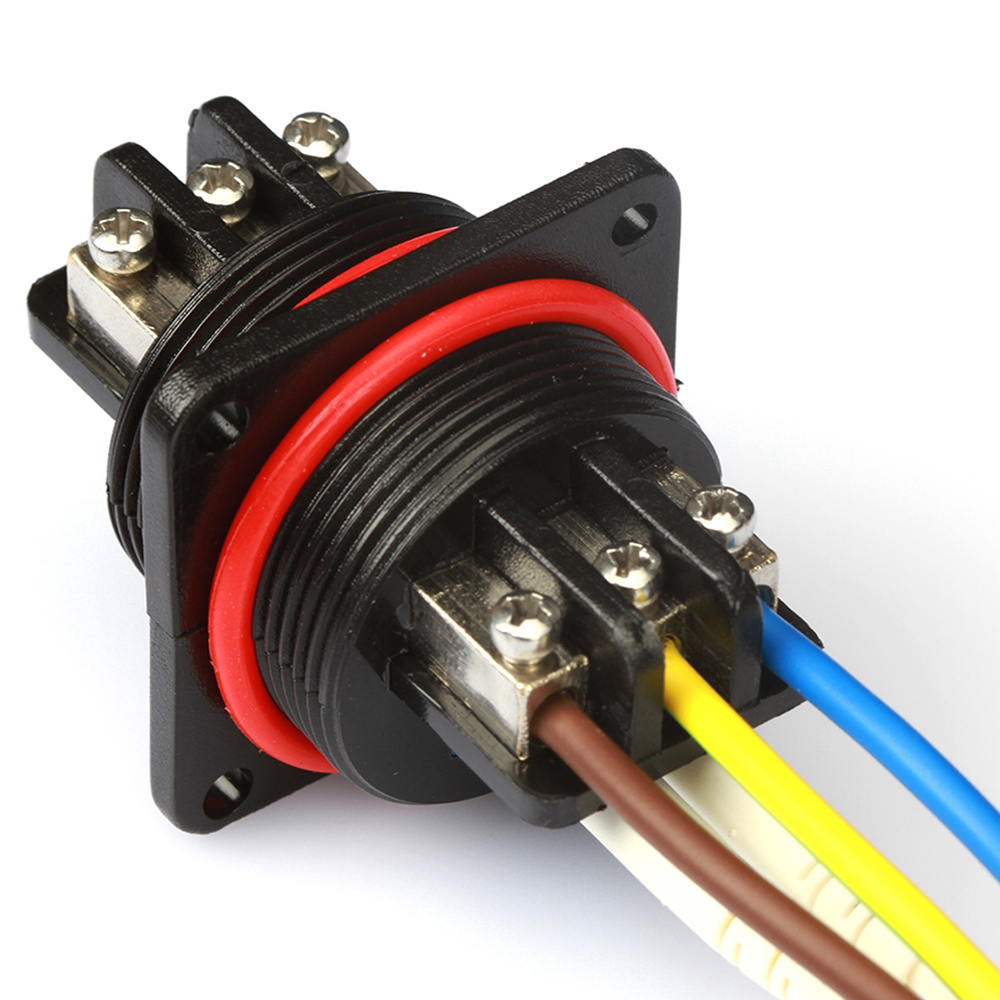

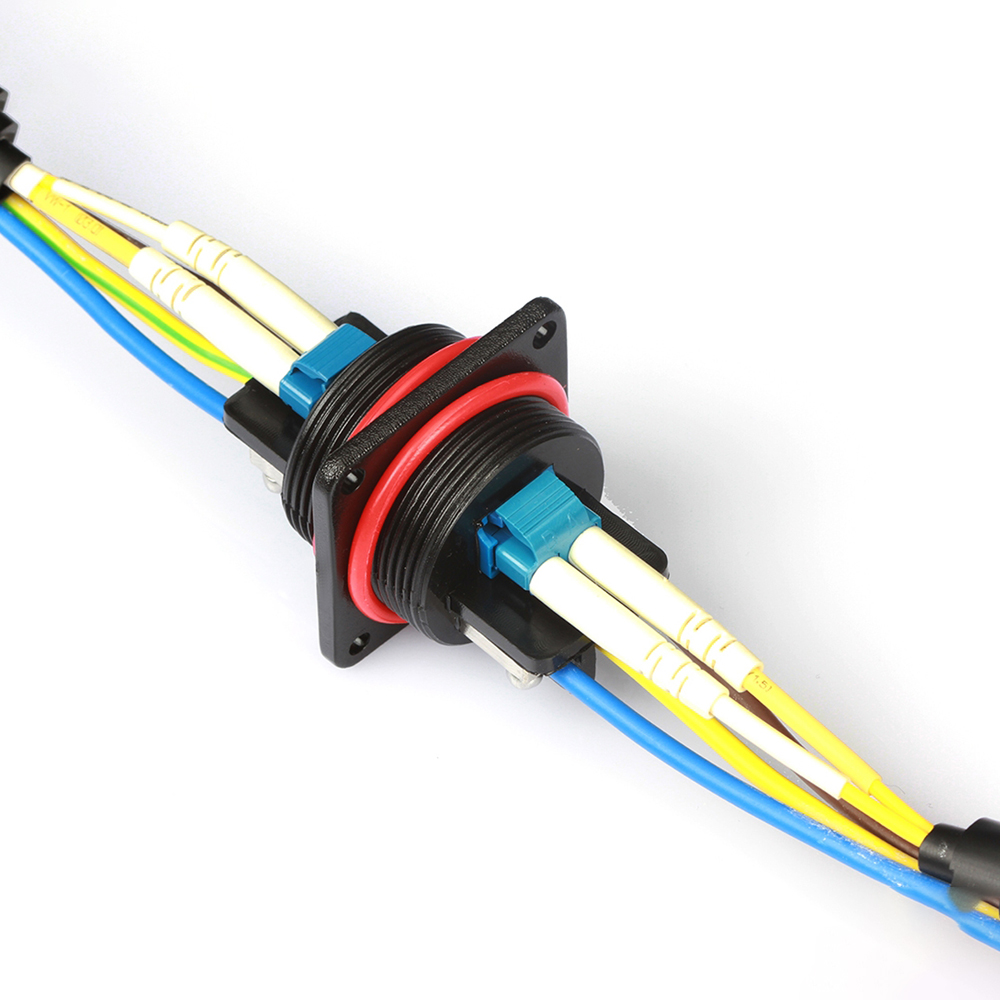

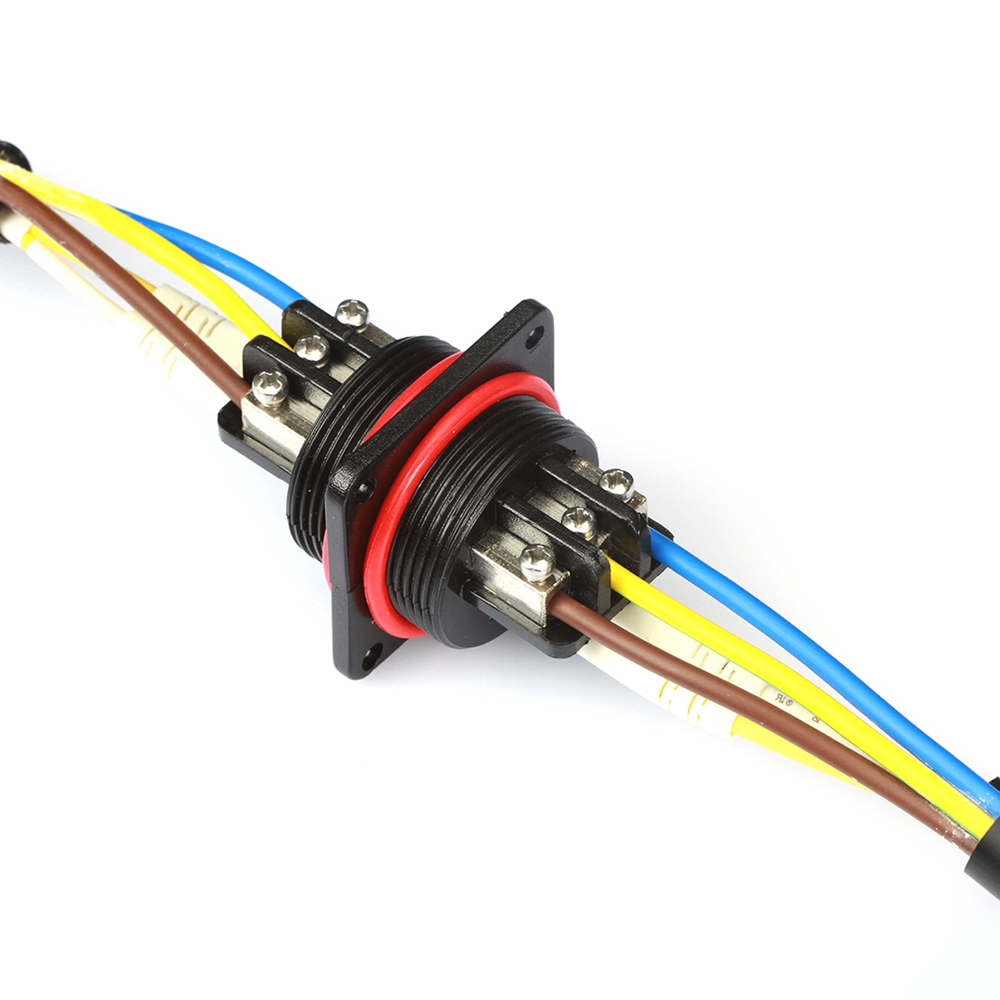

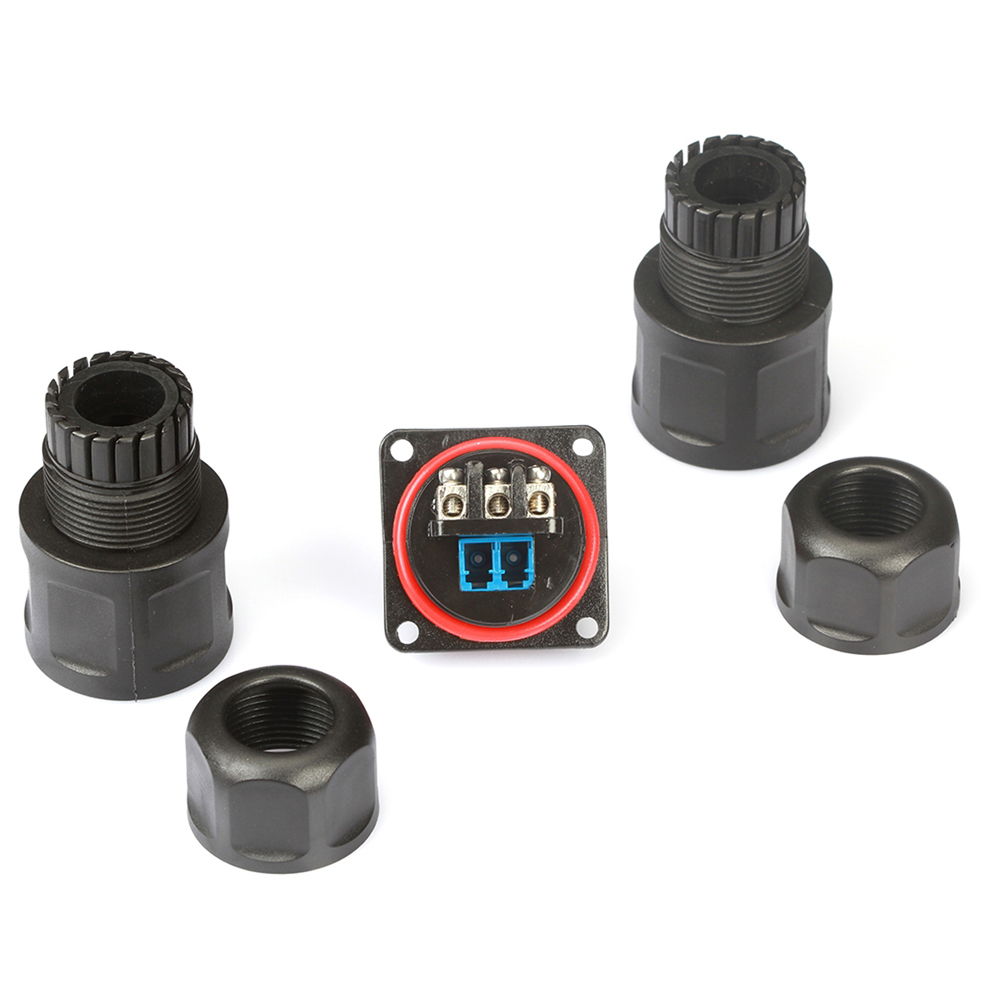

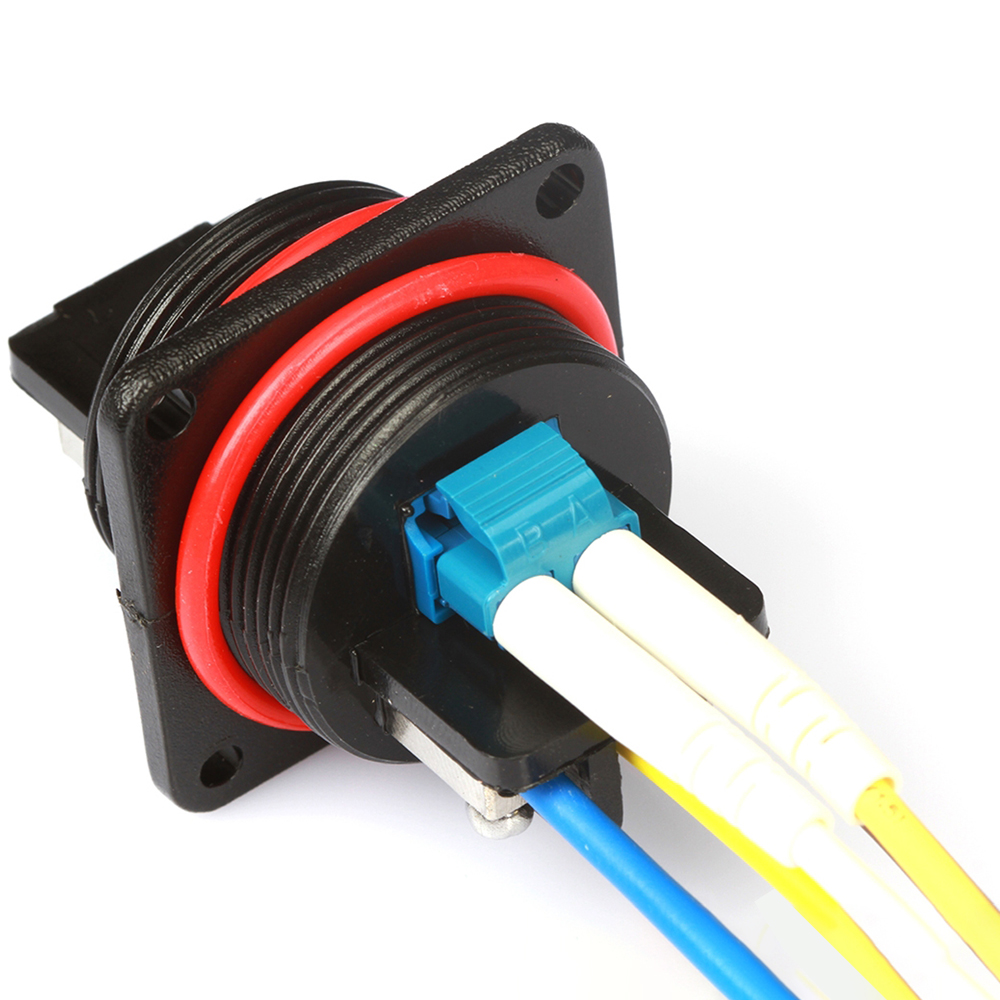

Screw Connection Field Assembly 3 power Fiber LC Dublex Connector
Product Code: WPP-0302M25F
TECHNICIAL SPECIFICATIONS
| Durability Voltage | 500VAC @ 60 s. |
|---|---|
| Number of Poles | 3 Power + LC Duplex |
| Seal Material | Silicone |
| Mold Material | PA6 |
| Insulation Structure | 1000 MΩ at 1000VDC |
| Contact Resistance | 1 mΩ max |
| Cable Cross Section Area | 0,75mm² ~ 4mm² |
| Current Rating | Power: 25A mwax. |
| Voltage Rating | Power: 250VAC max. |
| Product Description | Rated Current | Operating Voltage | Withstanding Voltage | Contact Resistance | Datasheet | Technical Drawing |
|---|---|---|---|---|---|---|
| - | ||||||
| 3 Power Fiber LC Dublex | 1 mΩ max |
