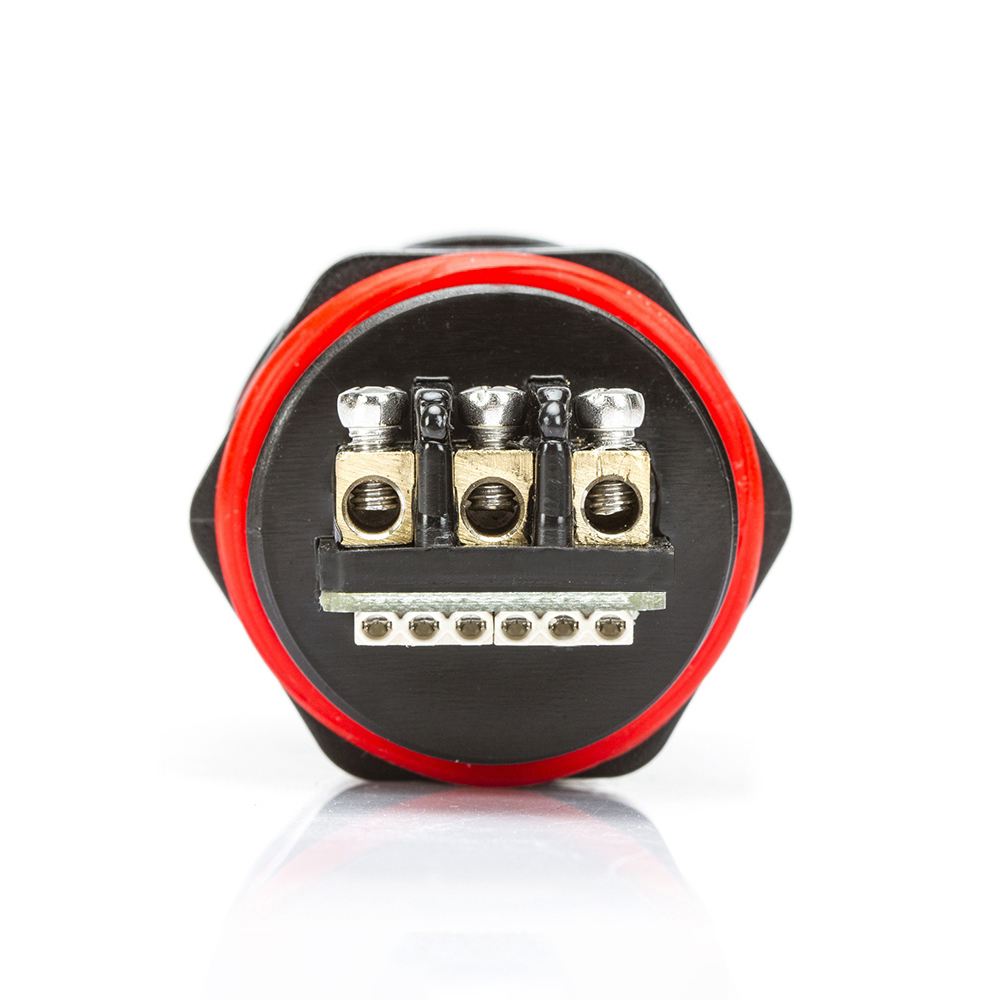

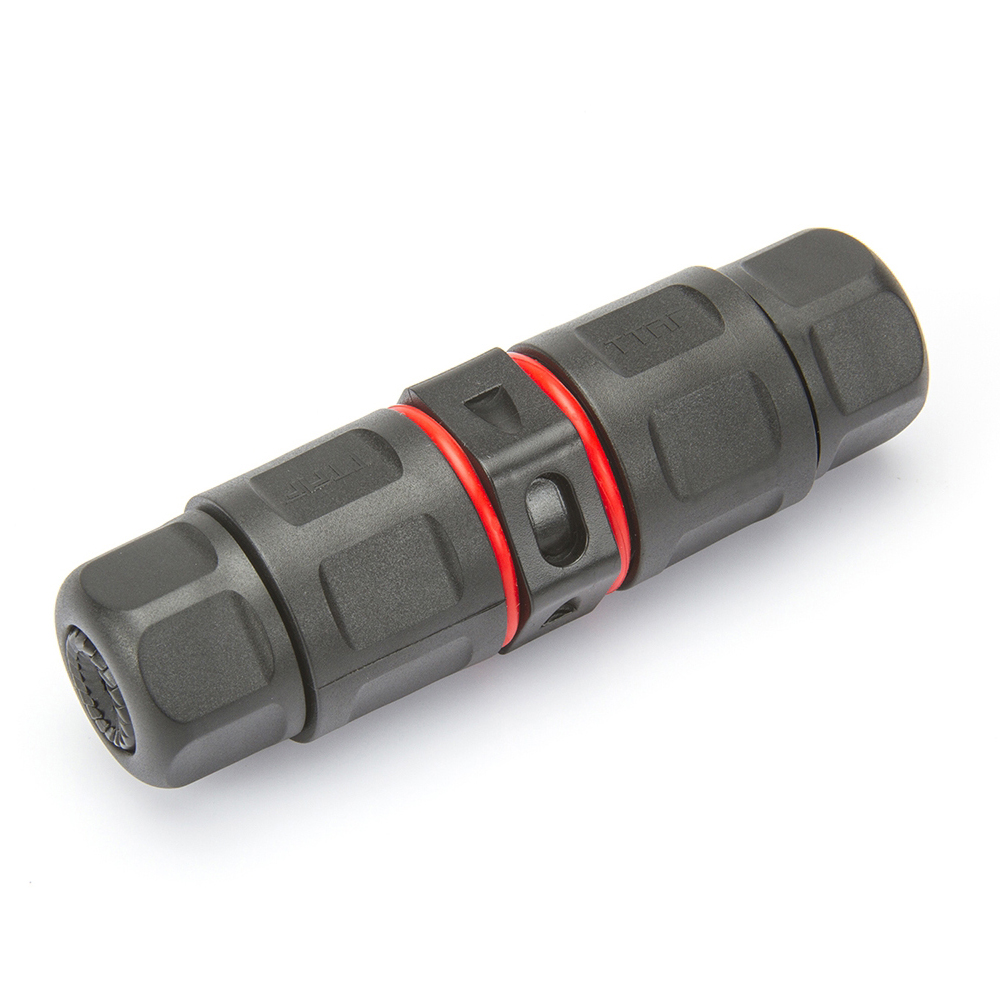

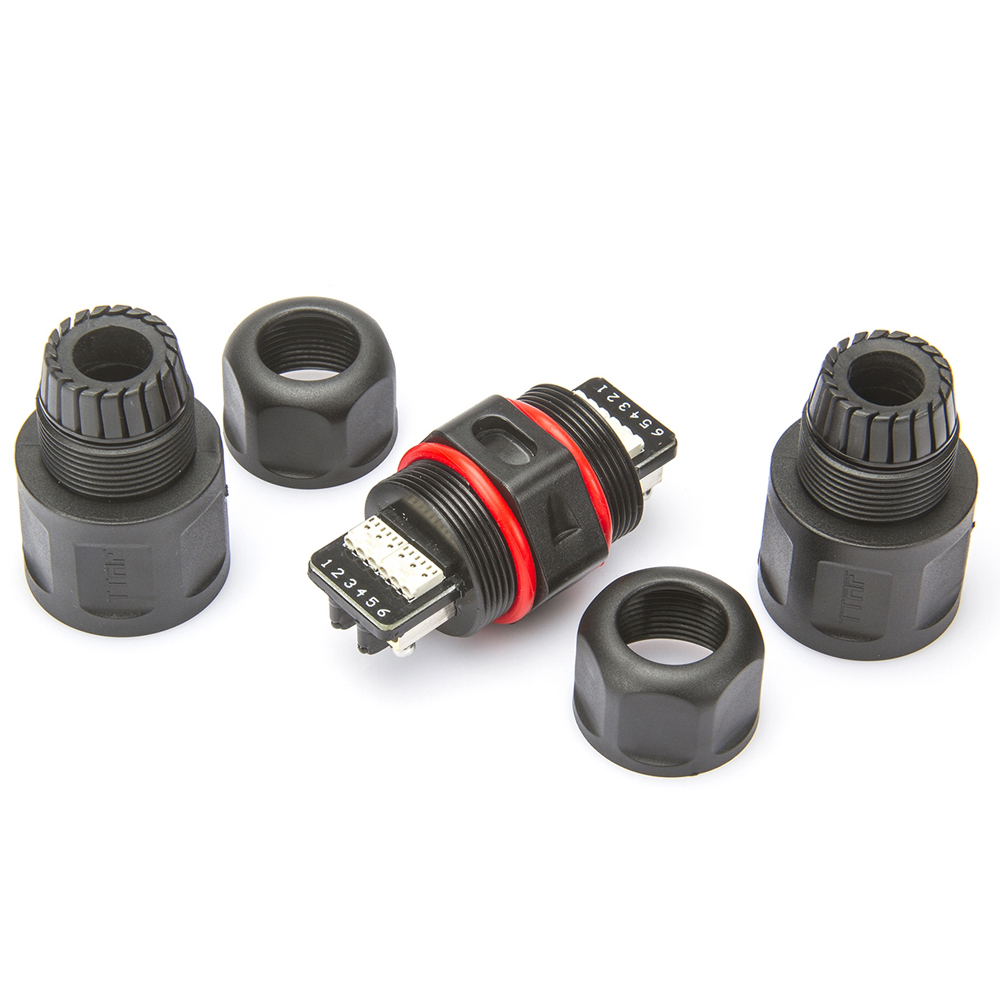

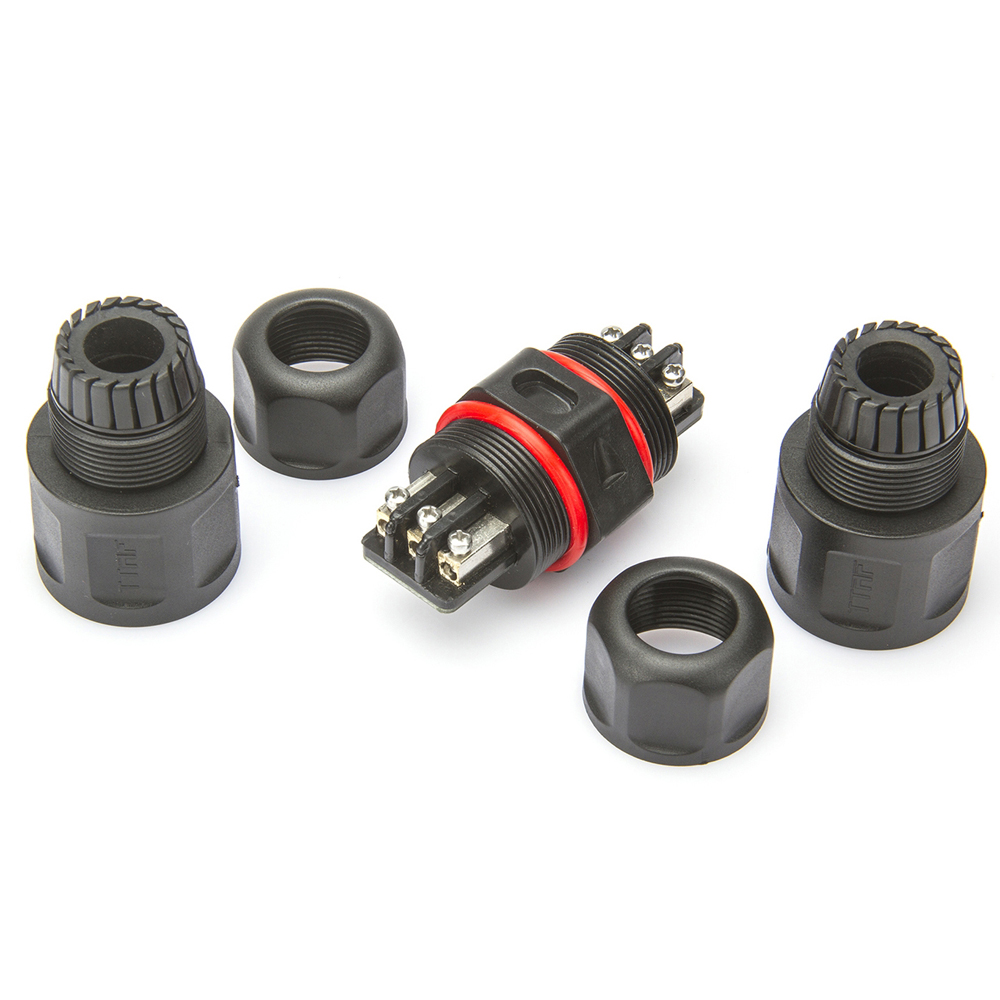

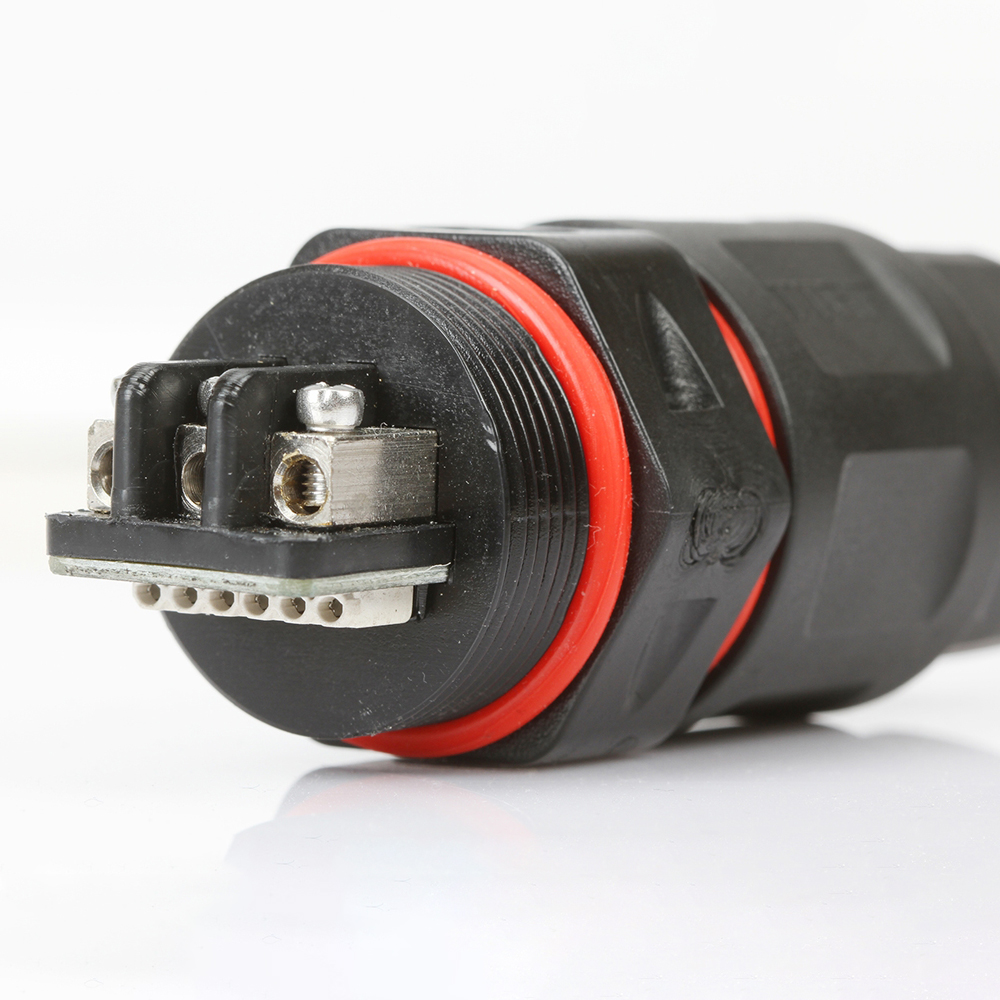

Screw Connection Field Assembly 3 Power 6 Data Connector
Product Code: WPI-3602M25
TECHNICIAL SPECIFICATIONS
| Durability Voltage | 1500VAC @ 60 s. |
|---|---|
| Number of Poles | 3 Power + 6 Data |
| Seal Material | Silicone |
| Mold Material | PA6 |
| Insulation Structure | 1000 MΩ at 1000VDC |
| Contact Resistance | 1 mΩ max |
| Max.Cable Cross Section Area | Power 2.5mm2 - Data 0.2 mm2 |
| Current Rating | Power: 25A max. + Data: 1 Amper |
| Voltage Rating | 250VAC max / Data : 50VDC/VAC |
| Product Description | Rated Current | Operating Voltage | Withstanding Voltage | Contact Resistance | Datasheet | Technical Drawing |
|---|---|---|---|---|---|---|
| - | ||||||
| 3 Power 6 Data Connectors | 1 mΩ max |
