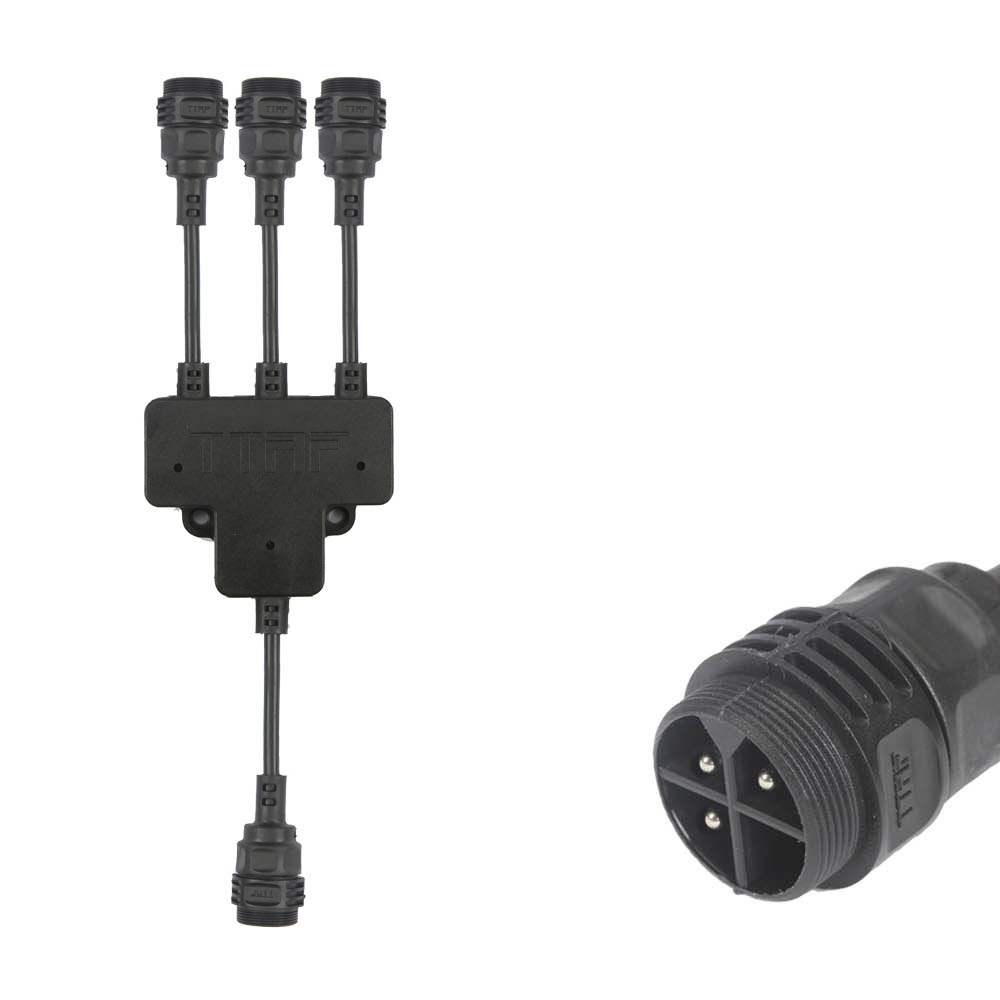

3 Pin Male Pluggable Field Assembly 1 In 3 Out Electrical Splitter

3 Pin Male Pluggable Field Assembly 1 In 3 Out Electrical Splitter

Product Code: WPS-0304N20M

TECHNICIAL SPECIFICATIONS

Number of Poles 3
Durability Voltage 3000VAC @ 60 s.
IP Rating IP68 (10m / 60min)
Operating Temperature -40°C ~ +85°C
Seal Material Silicone
Mold Material PA6
Insulation Structure 500 MΩ at 500VDC
Current Rating 20A max
Voltage Rating 250VAC max
