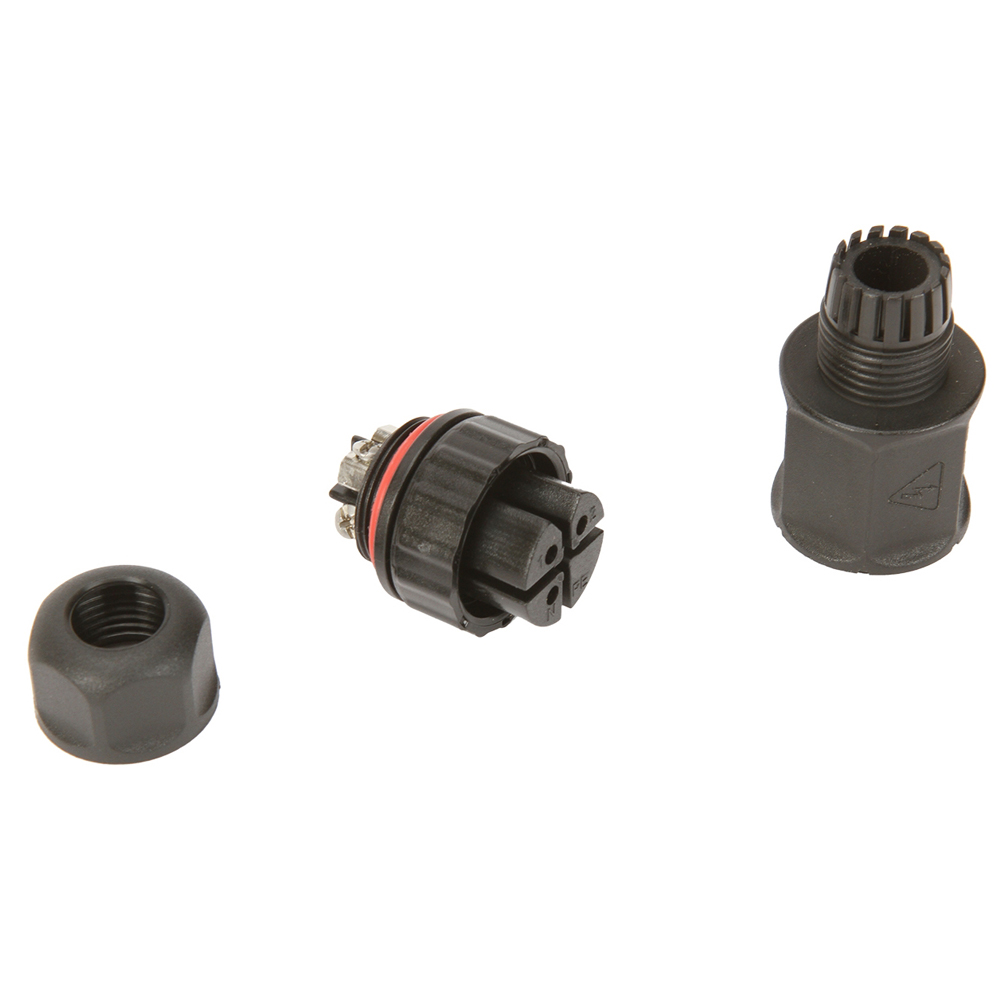

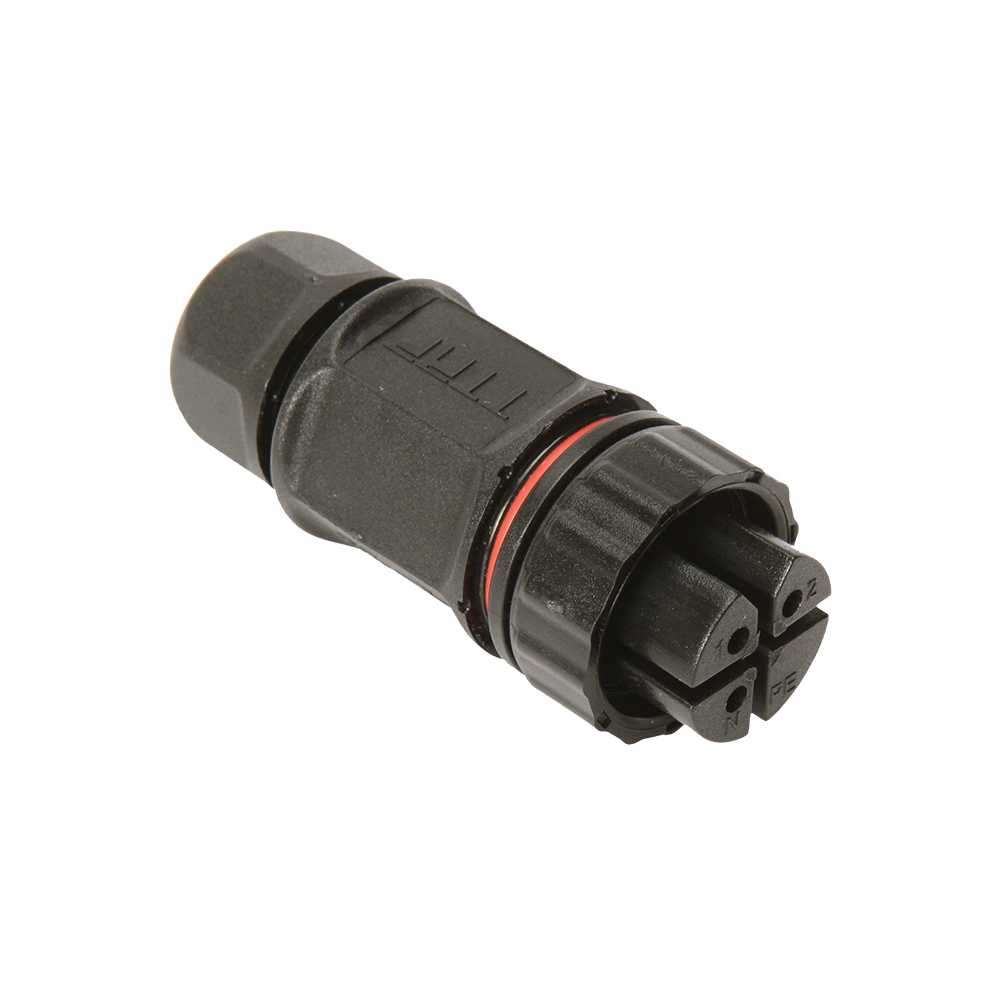

3 Pin Female Field Assembly Pluggable Connector

3 Pin Female Field Assembly Pluggable Connector

Product Code: WPF-0300M20

TECHNICIAL SPECIFICATIONS

Durability Voltage 3000VAC @ 60 s.
Number of Poles 3
Seal Material Silicone
Mold Material PA6
Insulation Structure 500 MΩ at 500VDC
Contact Resistance 30 mΩ max
Max.Cable Cross Section Area 0.5mm2 ~ 2.5mm2
Current Rating 20A max
Voltage Rating 250VAC max

3 Pin Female Field Assembly Pluggable Connector

Product Description Rated Current Operating Voltage Withstanding Voltage Contact Resistance Datasheet Technical Drawing
3 Pin
Female Field Type 30 mΩ max
