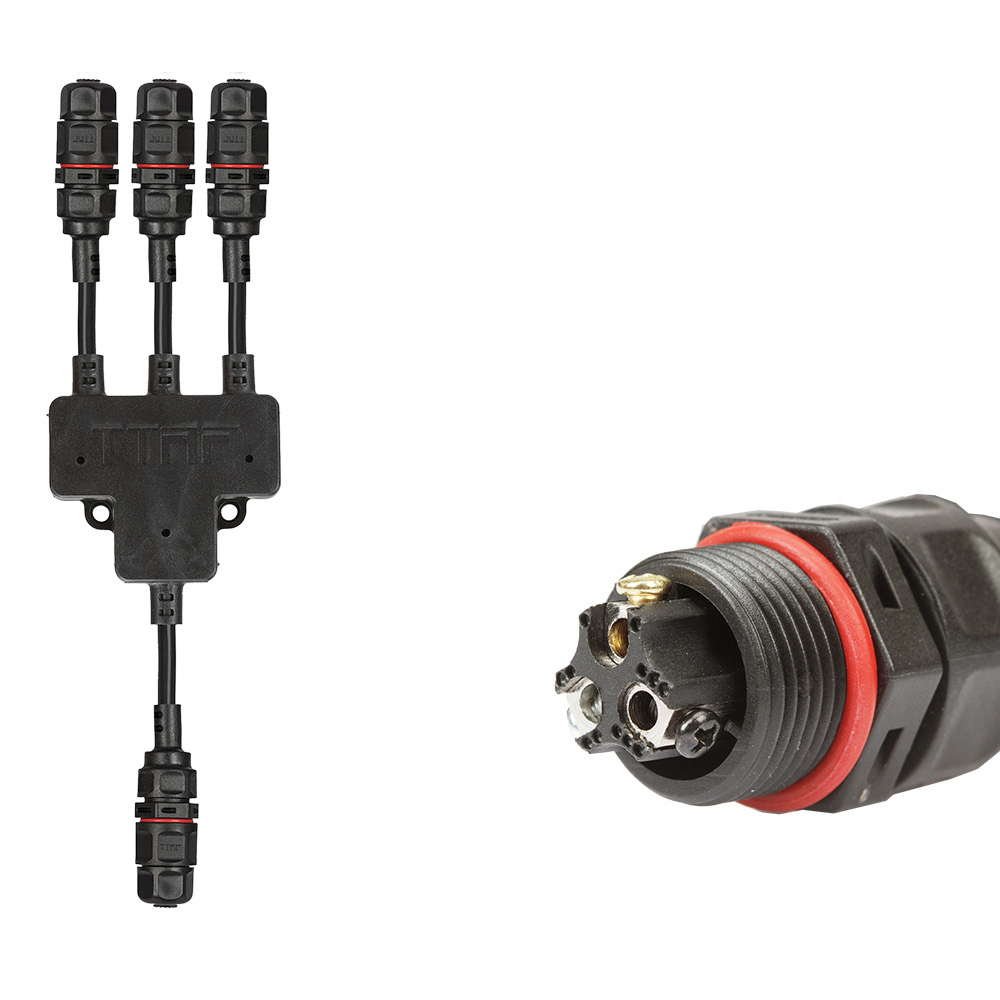

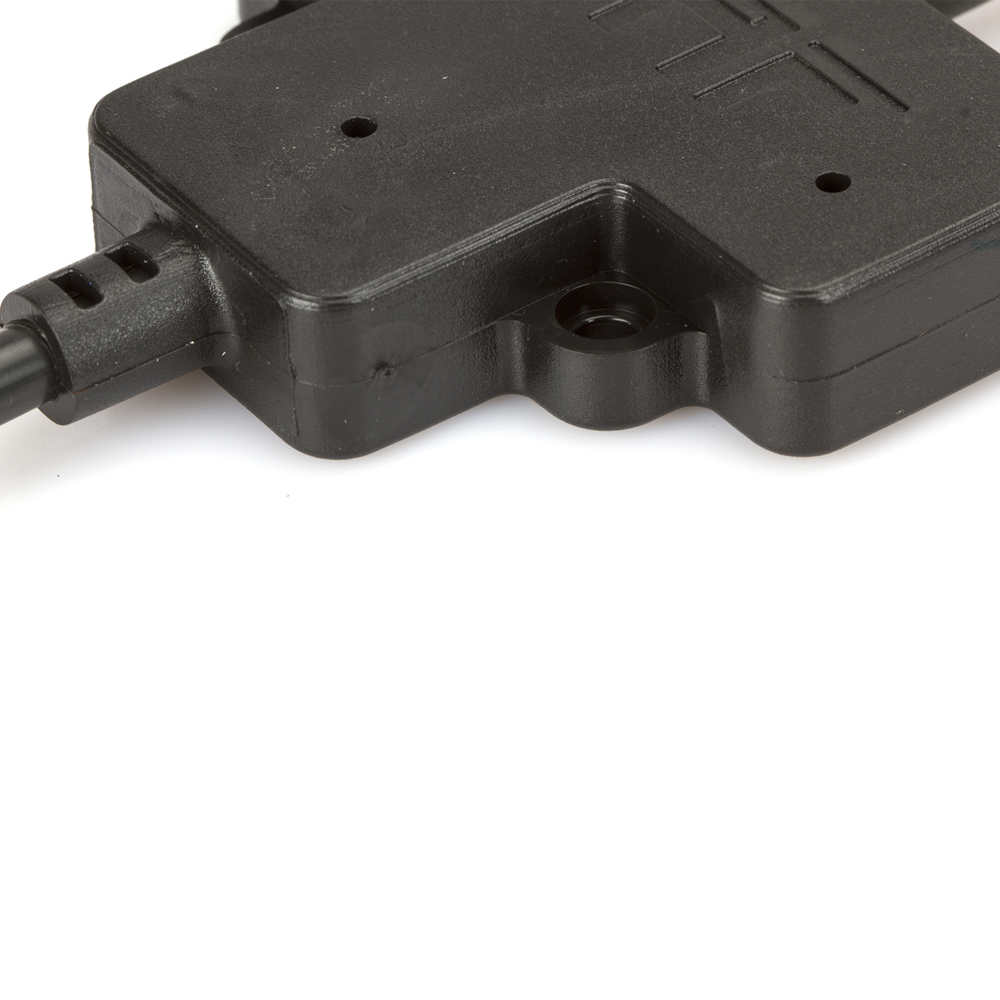

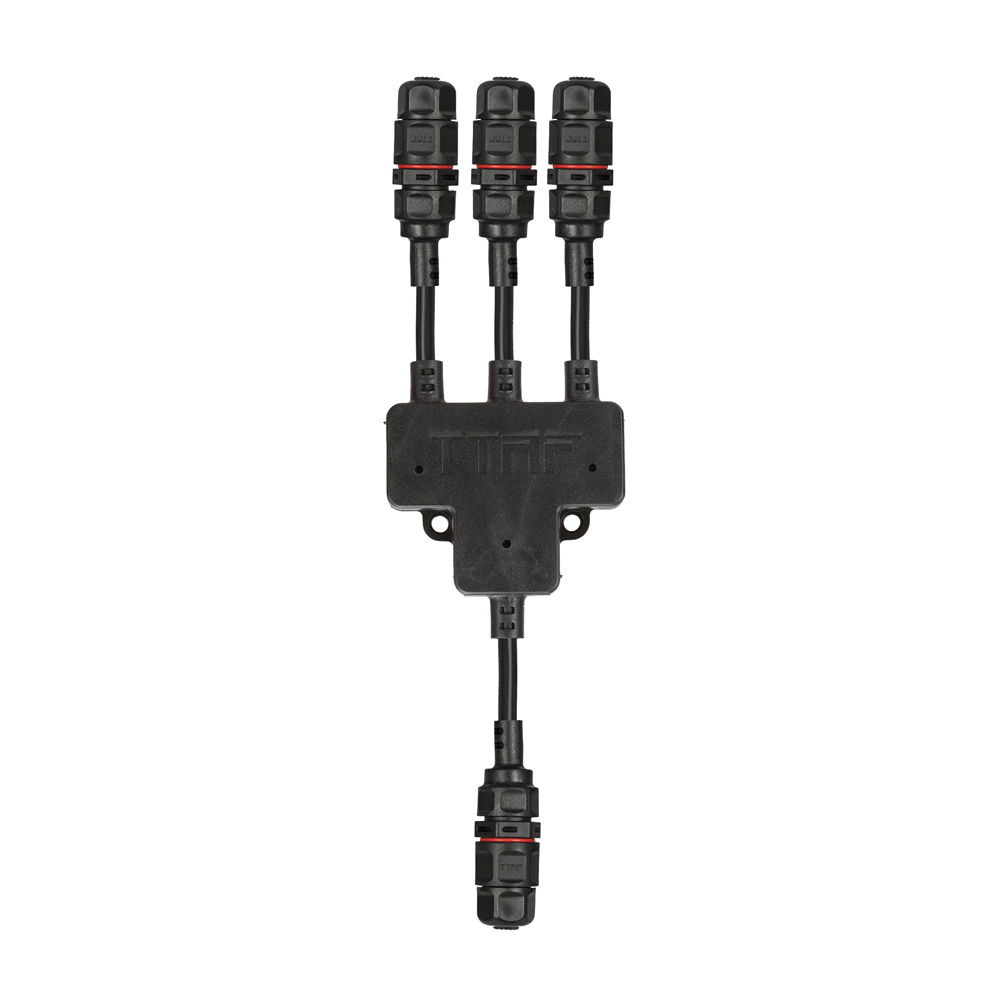

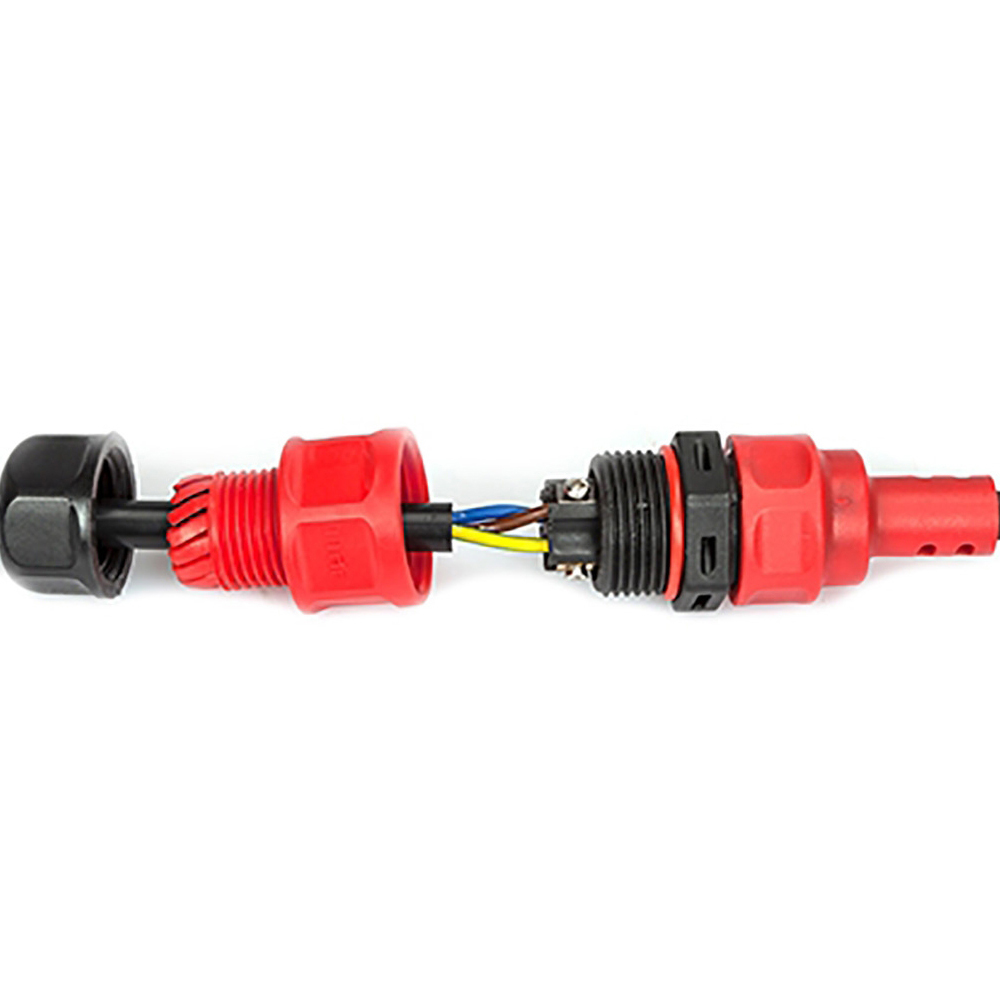

3 Pin Screw Connection Field Assembly 1x3 Electrical Splitter FOBOS
Product Code: WPA-0304N20
TECHNICIAL SPECIFICATIONS
| IP Rating | IP68 (10m / 60min) |
|---|---|
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Max.Cable Cross Section Area | 0.5mm2 ~2.5mm2 |
| Mold Material | PA6 |
| Seal Material | Silicone |
| Number of Poles | 3 |
| Current Rating | 20A max |
| Voltage Rating | 250VAC max |
